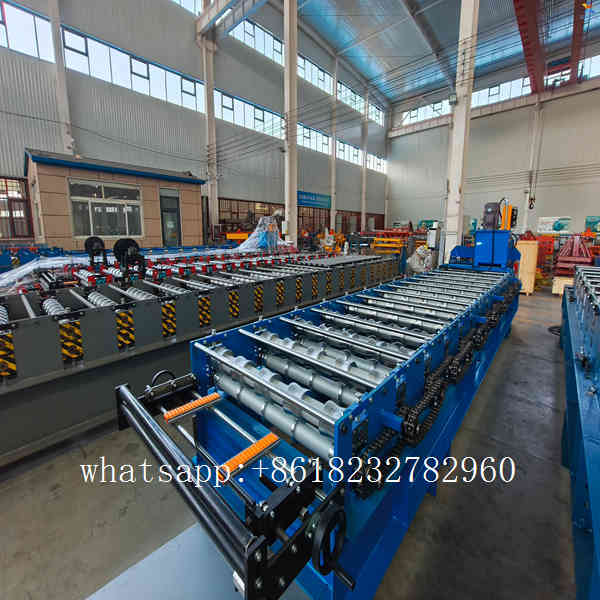

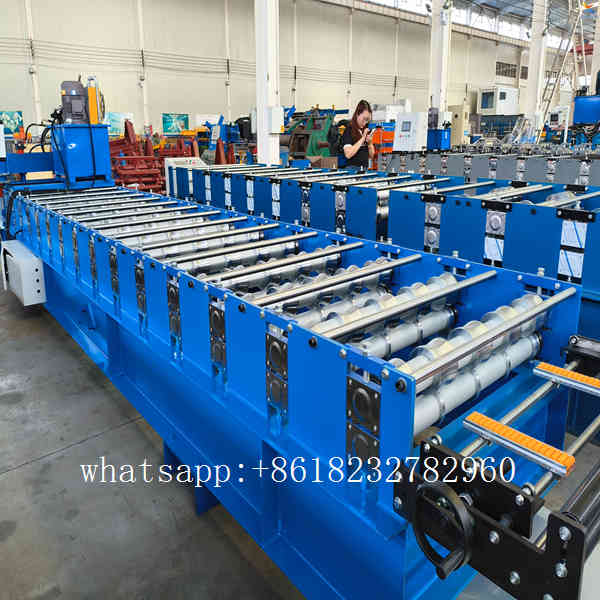

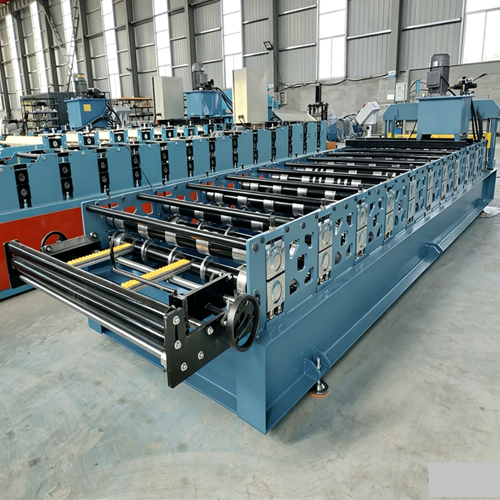

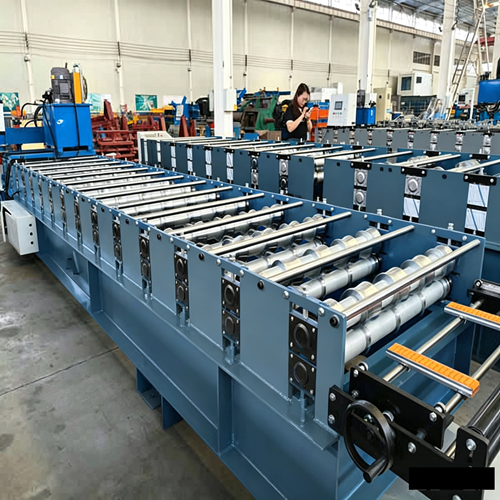

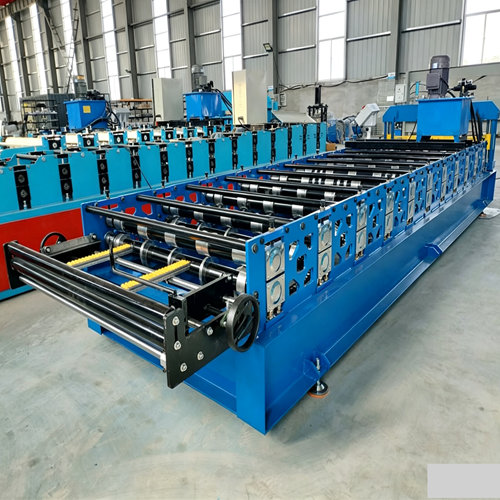

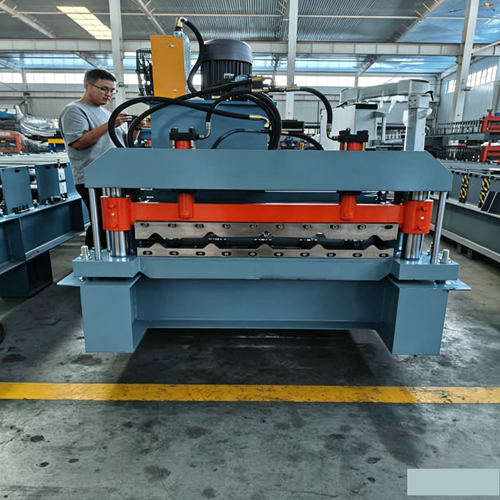

Color Steel Tile Machine
This color steel tile machine belongs to Trapezoidal Sheet Roll Forming branch under Roof Panel Roll Forming Machine series, dedicated cold bending equipment for trapezoidal metal roof panels. It mainly produces standard 840/900/1000 trapezoidal roof sheets with high wave ribs for fast drainage and strong load-bearing capacity, widely used as roof cladding for steel workshops, logistics warehouses, large farm markets, PV supporting roofs and agricultural greenhouses. Matched with metal coil uncoiler, it forms full automatic single-layer trapezoidal tile production line, standard core forming machine for building material factories.
The machine base is integrally welded with thick channel steel and treated by high-temperature stress relief annealing to eliminate welding internal stress. The long frame runs vibration-free without deformation during long-term high-speed continuous forming, keeping stable trapezoidal rib height and effective coverage width. All forming rollers are precision turned solid 45# carbon steel with full hard chrome plating after surface quenching for superior wear and corrosion resistance, processing color coated & galvanized coils 0.3–0.8mm thick. Multi-stage progressive trapezoidal bending roller stands form standard concave-convex trapezoidal ribs in one single pass, scratch-free sheet surface without bending cracks. Tight interlock between adjacent sheets delivers excellent roof waterproof and wind resistance performance, rib height and sheet width customizable per client drawings.

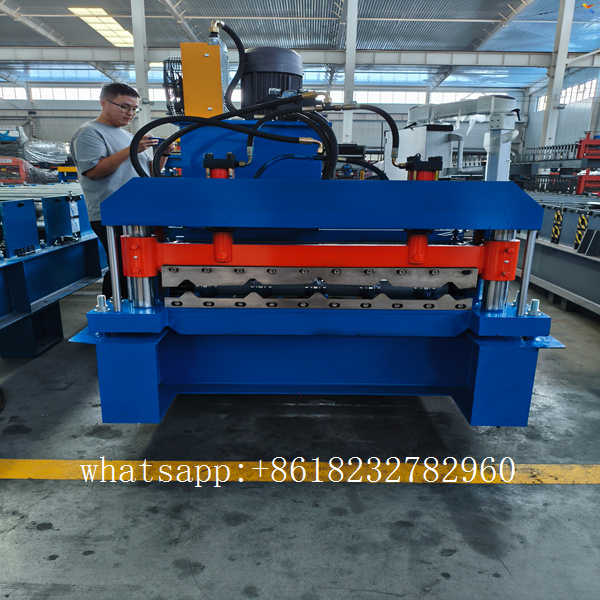

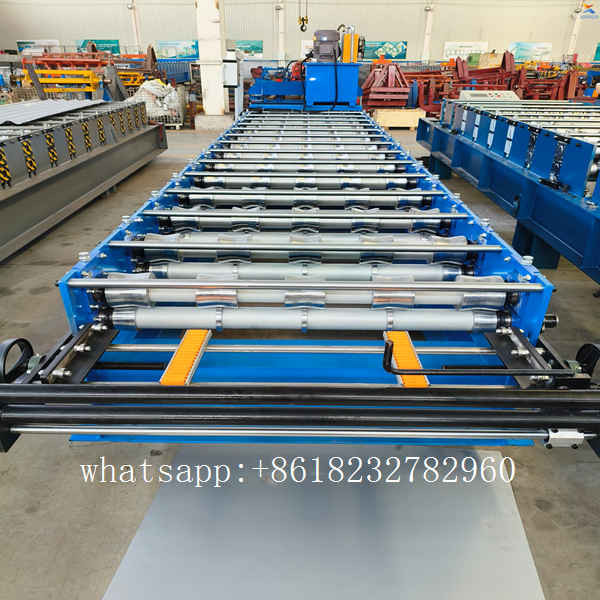

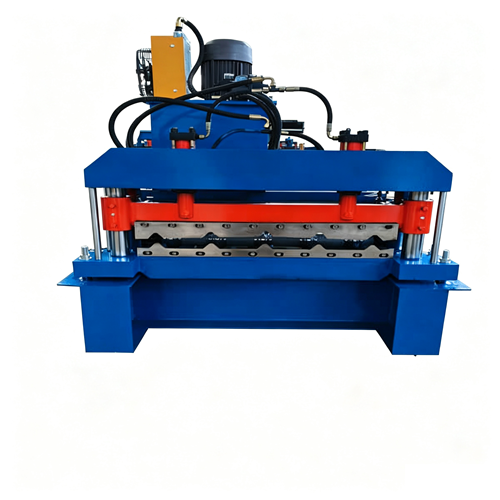

Equipped with variable frequency main motor and synchronous chain transmission, the machine operates smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 22 m/min. Manual deviation correction bracket at feeding inlet easily centers steel strips to reduce edge waste. Integral hydraulic cutting unit at tail delivers clean burr-free cuts, finished fixed-length tolerance ≤±1mm. Suspended cantilever PLC touch screen control system stores multiple standard tile length programs, automatically completing feeding, trapezoidal roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.
Every trapezoidal tile forming machine undergoes a 72-hour full-coil continuous endurance test before delivery to calibrate trapezoidal rib arc, sheet width and cutting tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customized for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This high-efficiency durable single-layer trapezoidal tile machine receives bulk orders from small, medium and large building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Color Steel Tile Machine / Trapezoidal Roof Sheet Roll Former |
| Category |
Roof Panel Roll Forming Machine > Trapezoidal Sheet Roll Forming |
| Processable Materials |
Color coated steel coil, galvanized steel strip |
| Applicable Sheet Thickness |
0.3–0.8mm |
| Standard Forming Coverage Width |
840/900/1000mm (custom trapezoidal rib size available) |
| Roller Material |
45# carbon steel, precision turned + surface quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
18–24 roller stations |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Forming Running Speed |
8–22 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Integral hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control with multi-size recipes stored |
| Overall Dimension |
6500×1020×1280mm |
| Total Machine Weight |
2.2 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
