XN-Aluzinc C17 Russia photos:

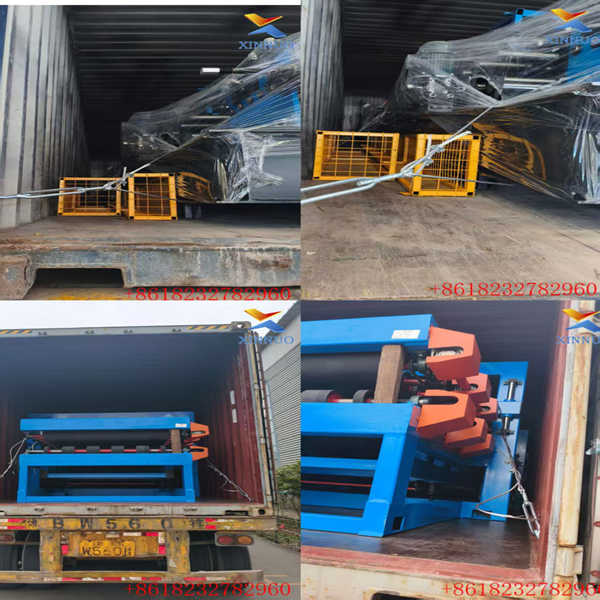

XN-Aluzinc C17 Russia Packing&Shipping :
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 12months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

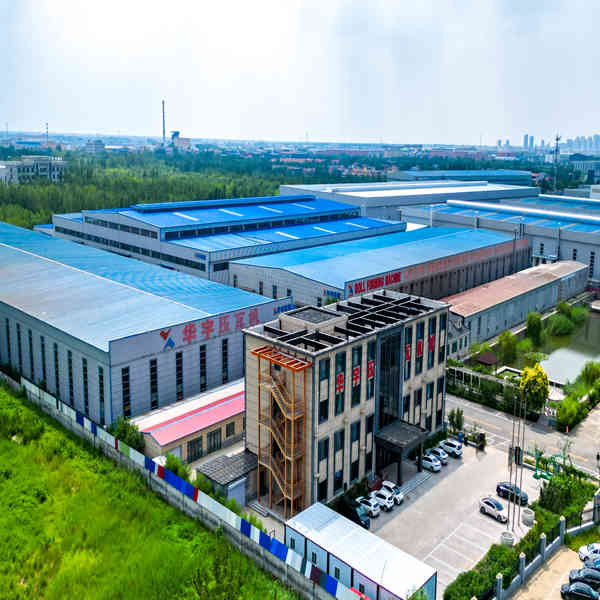

About us -HEBEI XINNUO
We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !

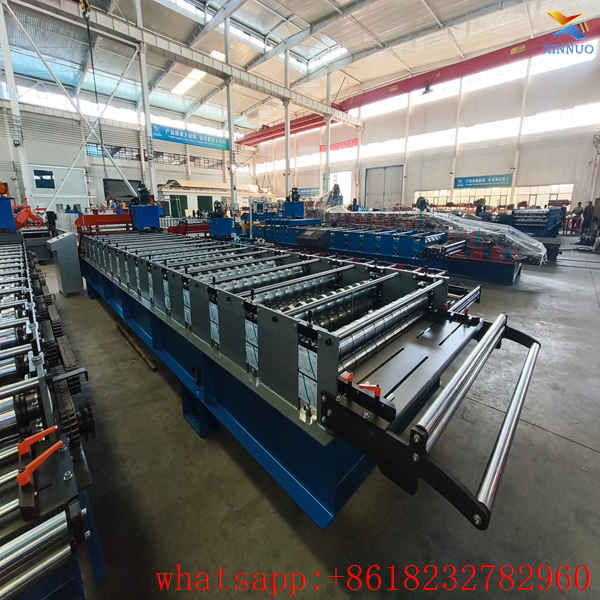

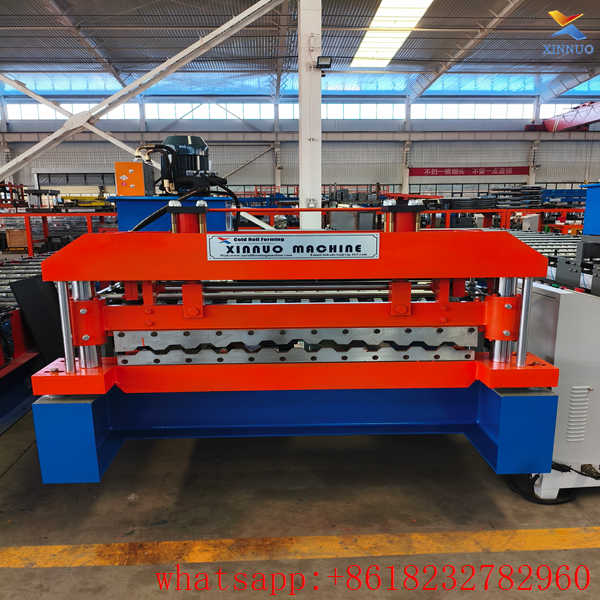

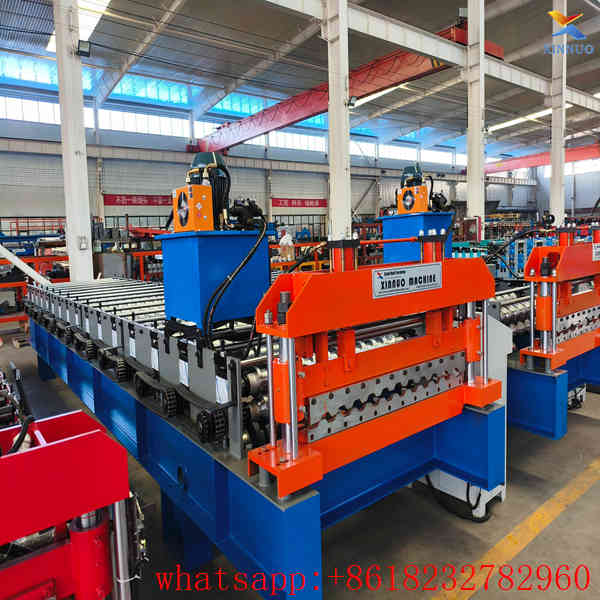

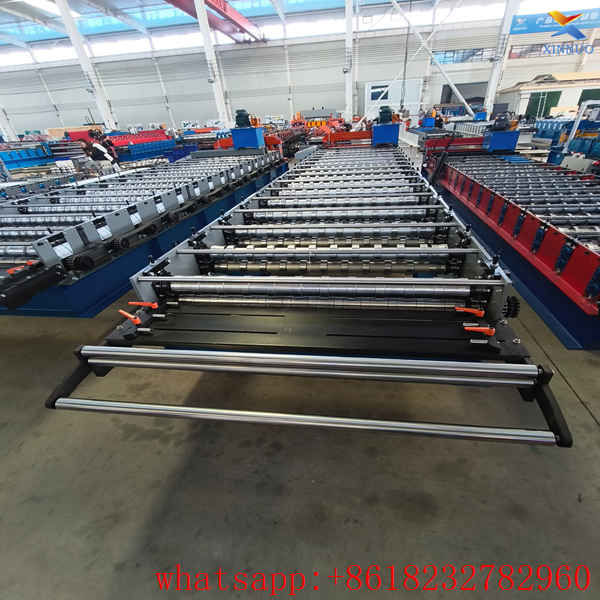

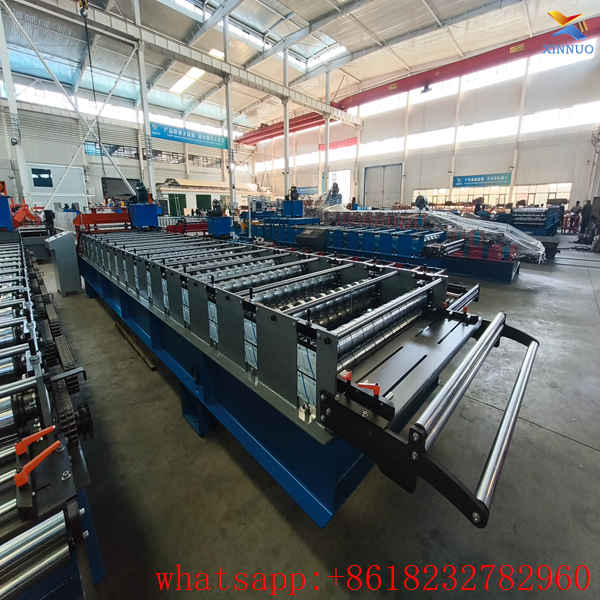

XN-Aluzinc C17 Russia is a trapezoidal tile roll former under Roof Panel Roll Forming Machine category, specially customized for Russian market. It works well with aluzinc sheets and color steel coils to produce local popular C17 trapezoidal roof panels. With moderate rib height, strong snow load capacity and fast drainage, the profile perfectly adapts to Russia’s cold and snowy climate. It is widely used for factories, warehouses, residential houses and greenhouses, becoming a hot-selling model for local metal sheet factories, and can form a full automatic line matched with 1000mm material feeding rack.

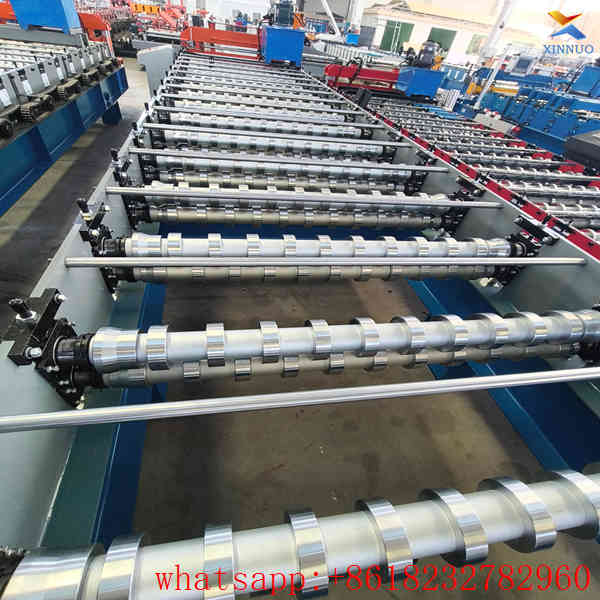

The machine base frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing to eliminate welding stress, so no vibration or deformation occurs during long-term low-temperature heavy-load production. All forming rollers are precisely made of solid 45# carbon steel with quenched thick hard chrome plating, wear and rust resistant without scratching the protective layer of aluzinc or color steel sheets. Multi-stage progressive rolling forms neat symmetrical trapezoidal ribs and flat sheets with tight interlocking joints, offering outstanding snow resistance and rainproof performance. It processes aluzinc and color steel coils from 0.3mm to 0.8mm thick with raw feeding width 1000mm, profile sizes fully comply with Russian local construction standards.
Equipped with variable frequency main drive and heavy-duty synchronous chain transmission, the machine runs smoothly with low noise, forming speed adjustable steplessly from 8 m/min to 18 m/min. Multiple guiding limit rollers and manual adjusting handwheels at feeding inlet automatically correct steel strip offset to reduce defective rate. An independent hydraulic flying shear at the tail provides stable oil pressure and burr-free smooth cuts, dimensional tolerance controlled within ±1mm. The suspended cantilever PLC touch screen control system allows operators to preset sheet length and total output quantity. The machine automatically completes feeding, roll forming, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, greatly cutting labor and raw material cost.
Every XN-Aluzinc C17 Russia trapezoidal sheet machine undergoes a 72-hour full-coil test before delivery to calibrate forming precision and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, local voltage customization service available for Russia. Remote technical debugging and on-site installation training by professional engineers are accessible. This cold-resistant high-compatibility model gains consistent repeat orders from Russian metal building material manufacturers.
