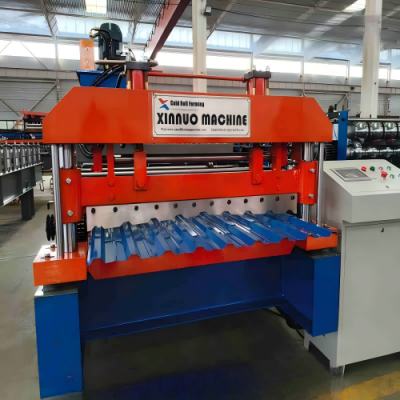

trapezoidal sheet roll forming machine

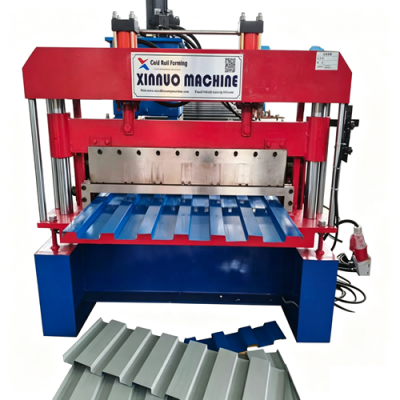

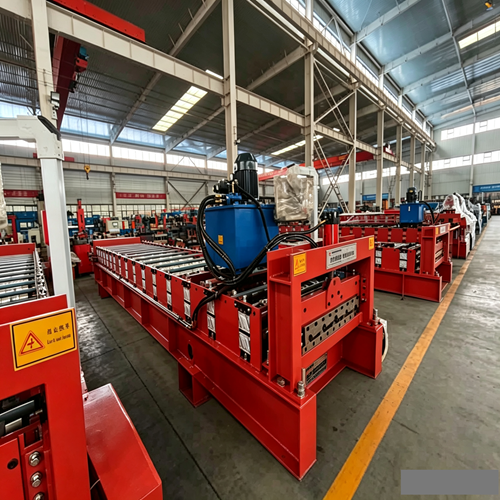

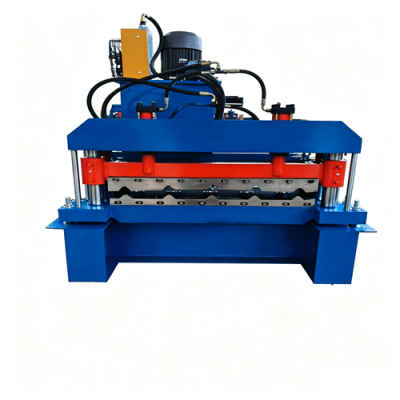

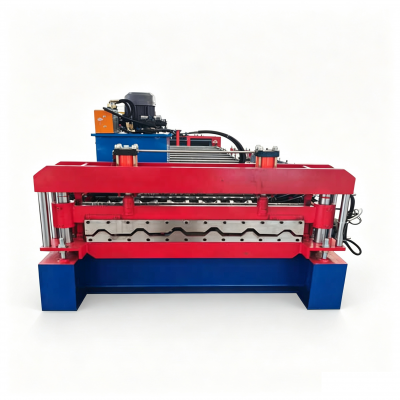

This metal deck forming machine belongs to floor deck roll forming machine category, dedicated cold bending equipment for load-bearing steel floor decks used in steel structure buildings. It mass-produces 720/750/915 specification steel bearing plates with integrated concave-convex stiffening ribs. After concrete pouring, the plates form integral load-bearing floor slabs, greatly reducing building dead weight and improving floor load capacity. Widely applied to high-rise office buildings, shopping malls, factories, parking garages and prefabricated steel structure constructions.
Compatible with 0.8–1.5mm hot-dip galvanized & high zinc coating steel strips. Matched with electric decoiler, leveling machine and recoiler, it forms a full automatic floor deck production line.

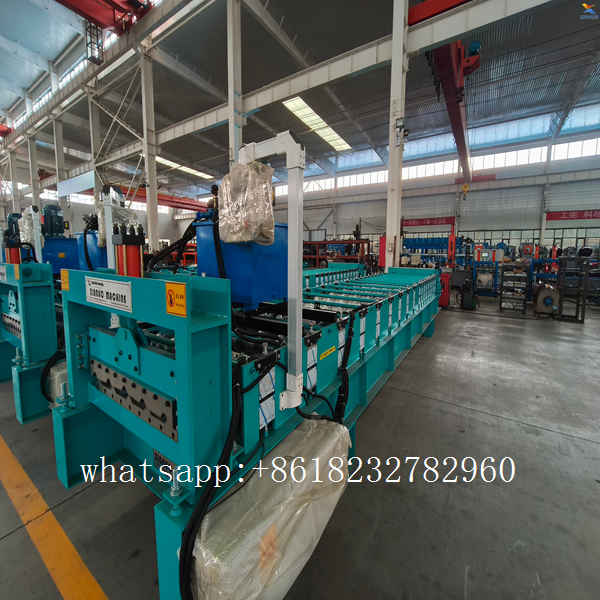

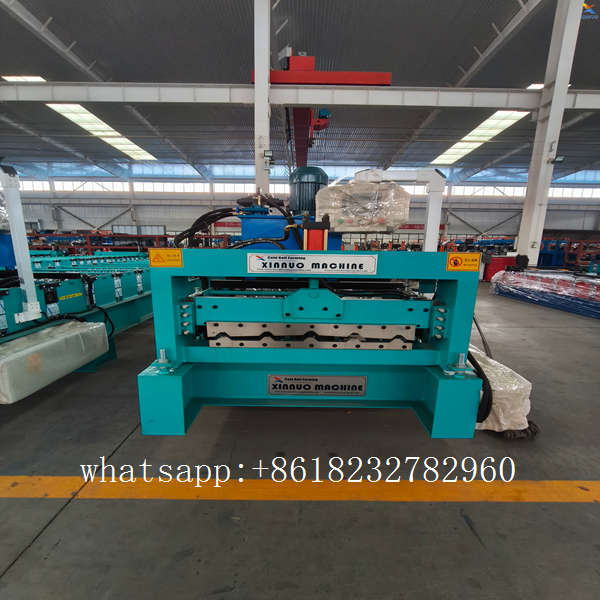

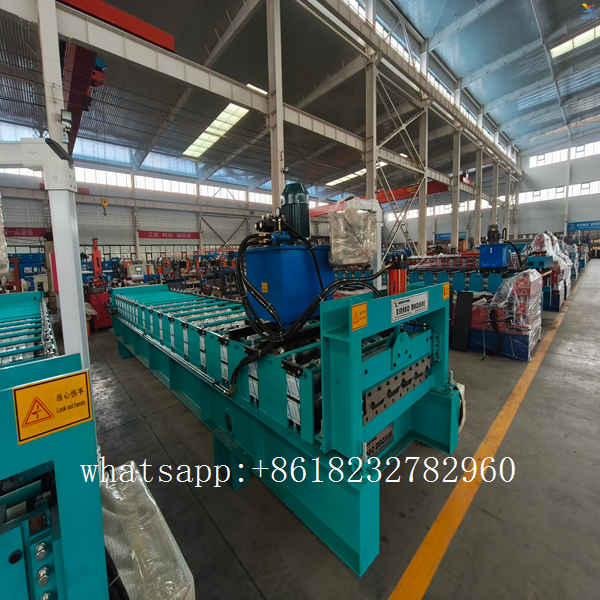

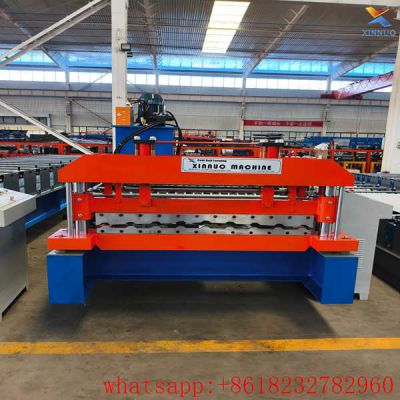

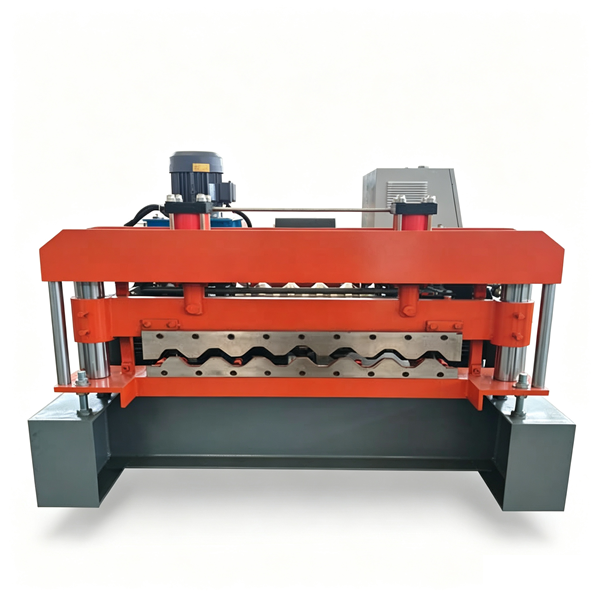

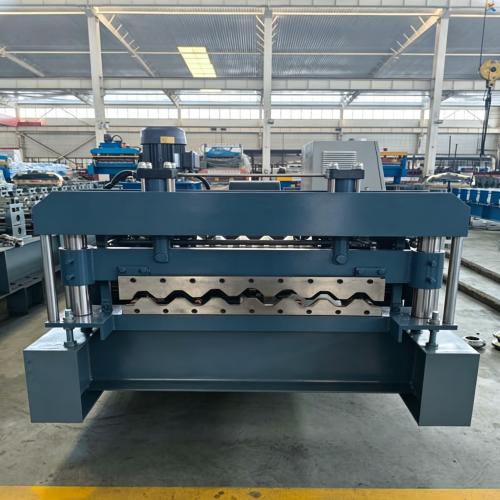

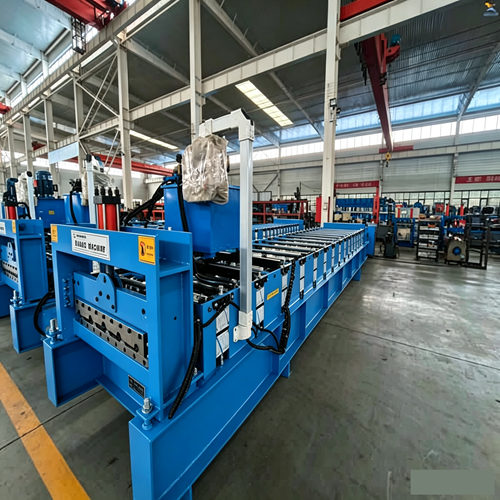

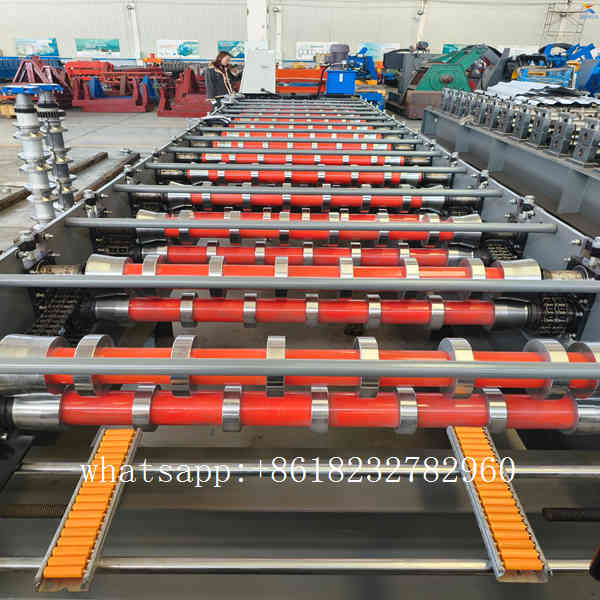

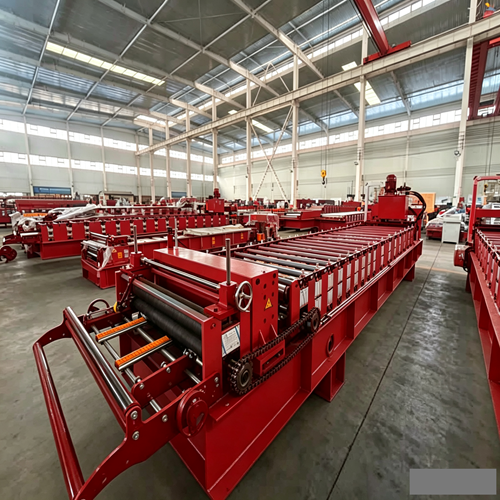

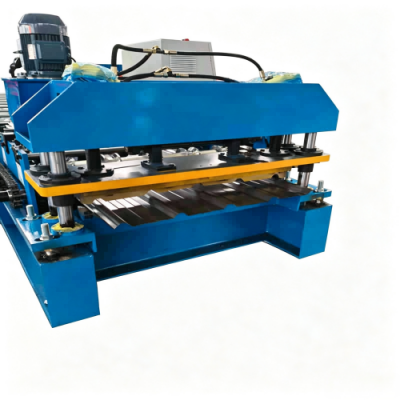

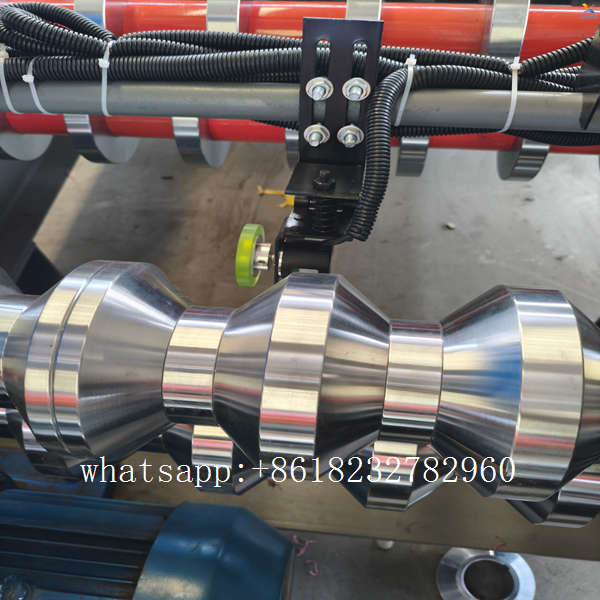

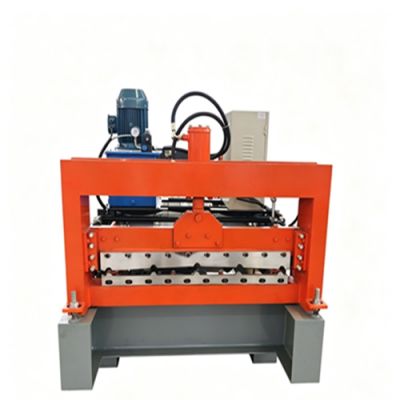

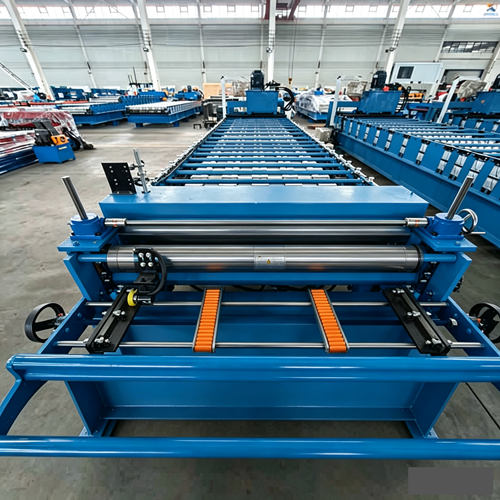

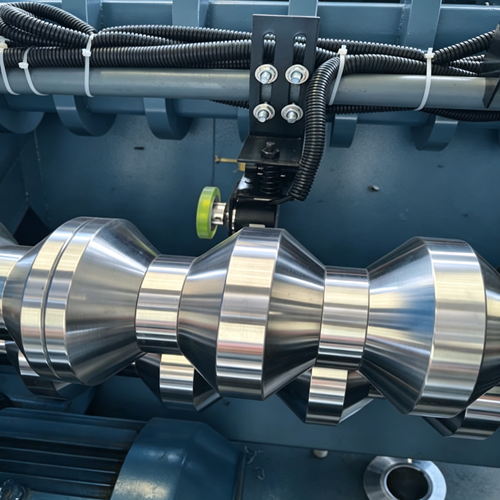

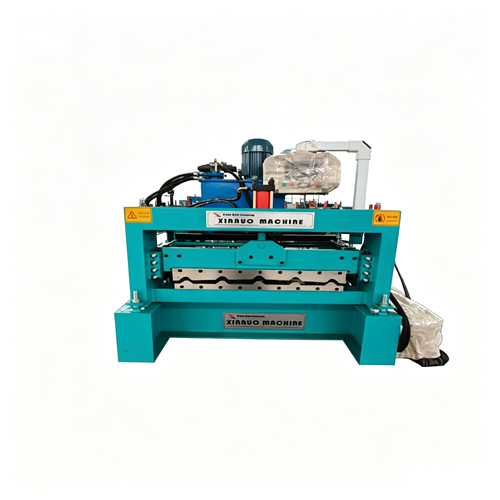

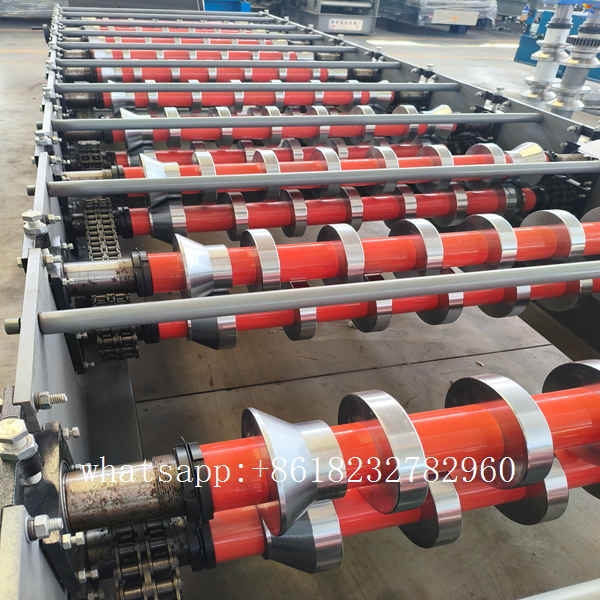

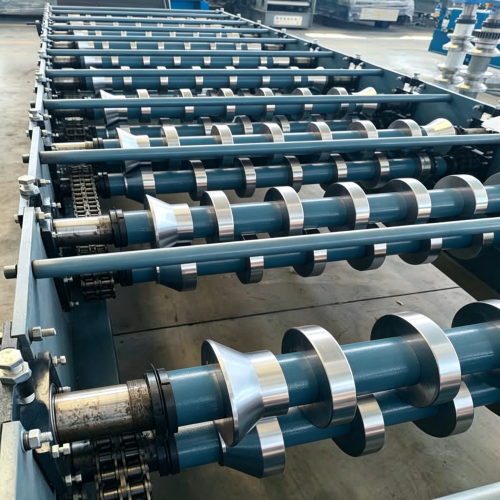

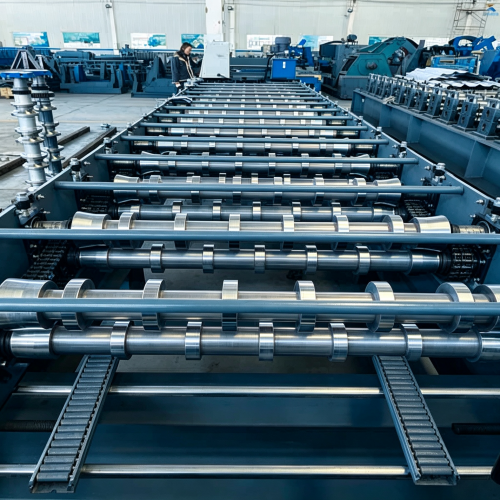

The machine base is integrally welded with heavy standard channel steel and treated by high-temperature stress relief annealing to eliminate welding internal stress, running without vibration offset during long-term heavy-load continuous forming, maintaining stable uniform rib height and effective coverage width. All forming rollers are precision turned solid 45# carbon steel with full hard chrome plating after surface quenching for outstanding wear, compression and corrosion resistance, processing hot-dip galvanized strips 0.8–1.5mm thick. Multi-group progressive wave bending roller stands form concave-convex load-bearing stiffening ribs in one pass, scratch-free sheet surface without spring-back cracks. Tight interlock between plates avoids concrete leakage during pouring. Rib height, sheet width and rib spacing fully customizable per structural engineering drawings.

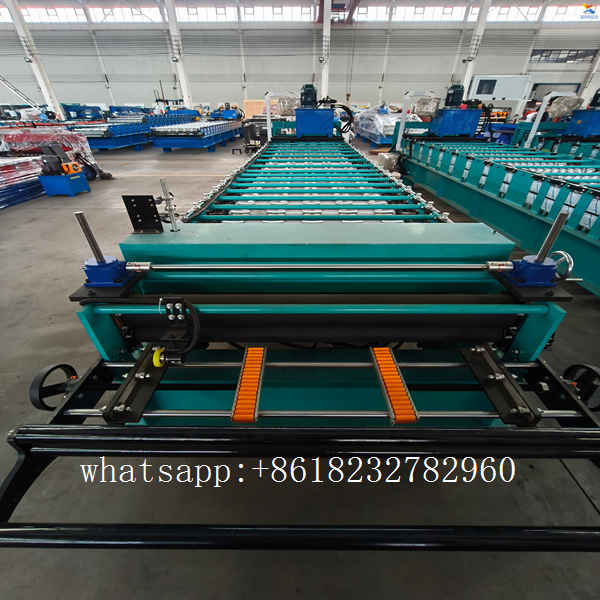

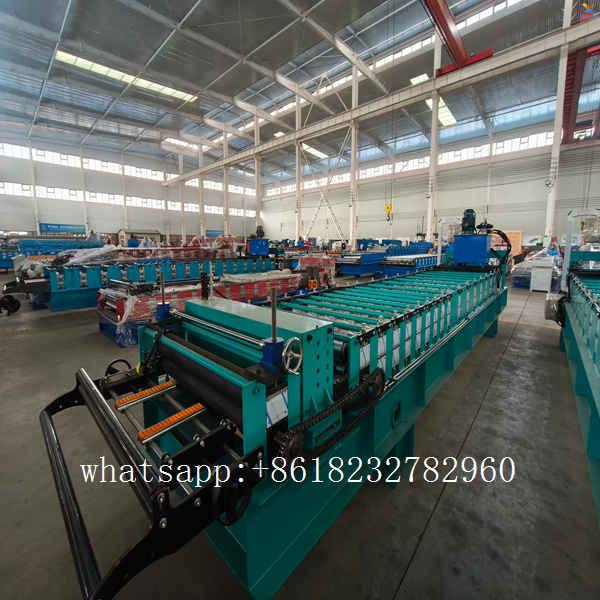

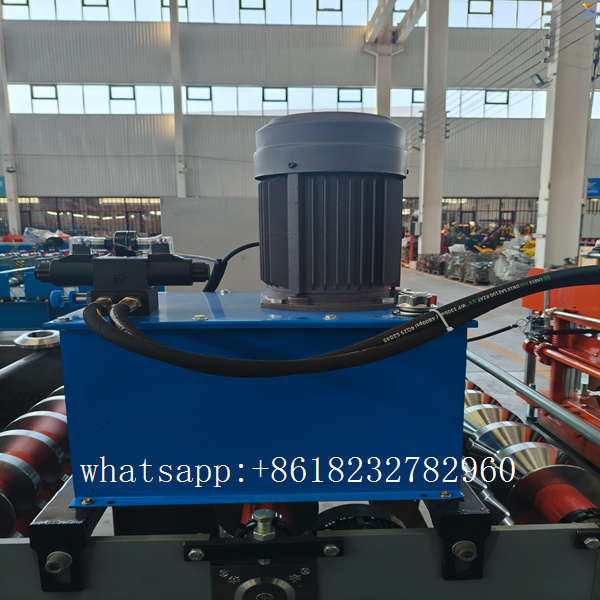

Equipped with high-power variable frequency synchronous chain transmission, no slipping during thick galvanized sheet forming, running smoothly with low noise, forming speed steplessly adjustable from 6 m/min to 18 m/min. Heavy-duty manual deviation correction mechanism at feeding inlet steadily centers steel strips to reduce edge waste. Integral vertical heavy hydraulic cutting unit at tail with thickened wear-resistant blades fits thick sheets, delivering clean burr-free cuts, finished fixed-length tolerance ≤±1mm. Separate external PLC electric control cabinet + touch screen control system stores multiple floor deck profile parameter recipes, automatically completing feeding, stiffening rib roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop continuous production.
Every metal deck forming machine undergoes a 72-hour full-load thick coil endurance test before delivery to calibrate wave arc, sheet width and cutting dimensional tolerance. Complete spare forming rollers, thickened cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase industrial voltage available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This industrial load-bearing floor deck forming equipment receives bulk orders from steel structure engineering manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Metal Deck Forming Machine / Industrial Floor Deck Roll Forming Machine |
| Category |
Floor Deck Roll Forming Machine |
| Processable Materials |
Hot-dip galvanized steel strip, high zinc coating load-bearing galvanized coil |
| Applicable Sheet Thickness |
0.8–1.5mm |
| Standard Forming Coverage Width |
720/750/915mm (custom load-bearing rib size) |
| Roller Material |
45# carbon steel, precision turned + full quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
20–28 roller stations |
| Speed Control Mode |
Variable frequency independent synchronous stepless speed regulation |
| Forming Running Speed |
6–18 m/min |
| Main Motor Power |
7.5kW |
| Cutting System |
Integral vertical heavy hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Independent external PLC electric cabinet + touch screen full-automatic NC, multiple floor deck recipes stored for one-click switch |
| Overall Dimension |
7000×1100×1350mm |
| Total Machine Weight |
3.8 Tons |
| Warranty Period |
2 years full machine warranty |
| Delivery Lead Time |
50–60 days |
