trapezoidal roof panel machine

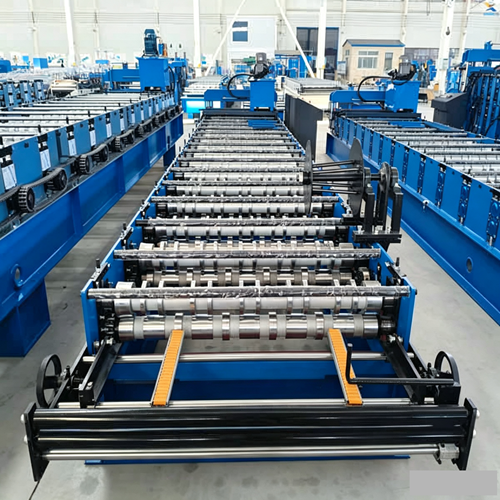

This trapezoidal roof panel machine belongs to Trapezoidal Sheet Machine subcategory of Roof Panel Roll Forming Machine series, dedicated cold bending equipment for industrial load-bearing trapezoidal metal roof sheets. It mass-produces high-rib trapezoidal color steel roof tiles of 840/900/1050 specifications, featuring high rib height, strong load capacity and fast drainage speed. Widely used for waterproof roof cladding of large-span buildings including steel workshops, logistics warehouses, farm markets, PV support roofs and agricultural greenhouses. Matched with uncoiler and recoiler, it forms full automatic single-layer trapezoidal tile production line.

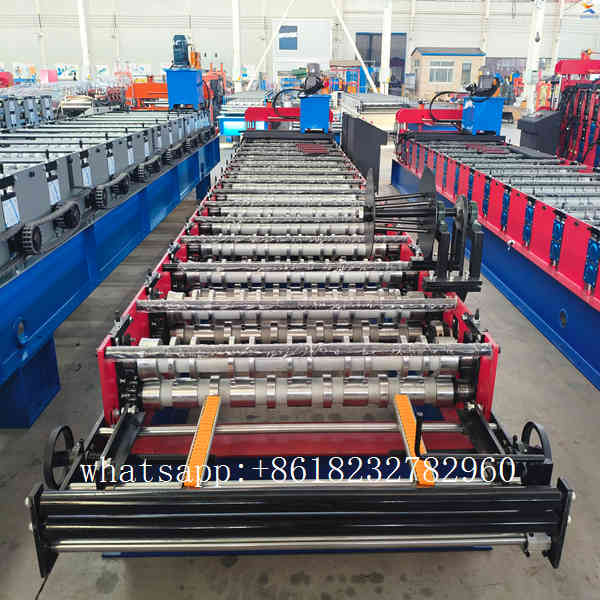

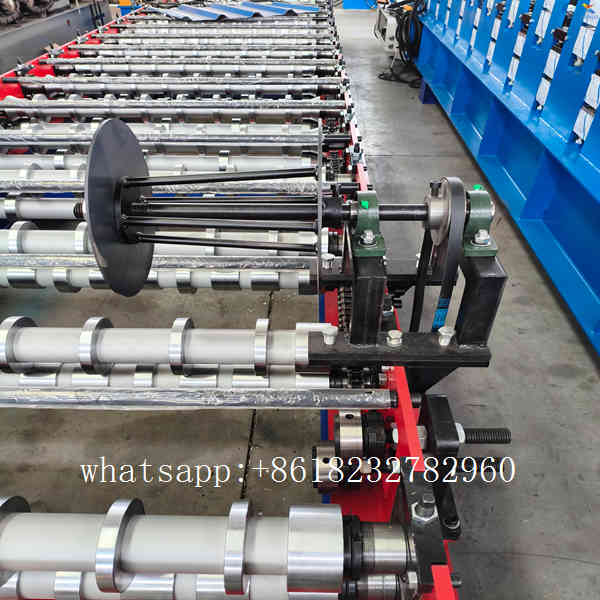

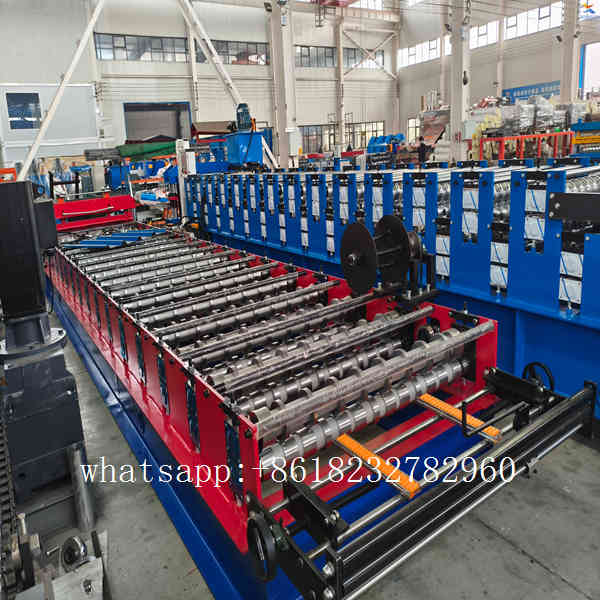

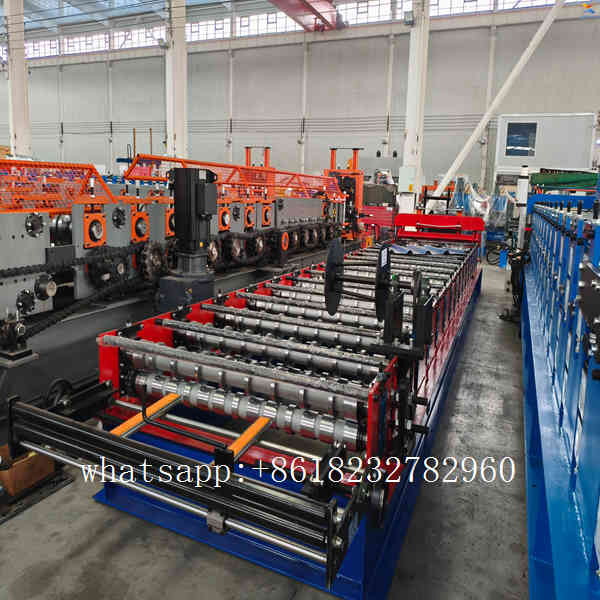

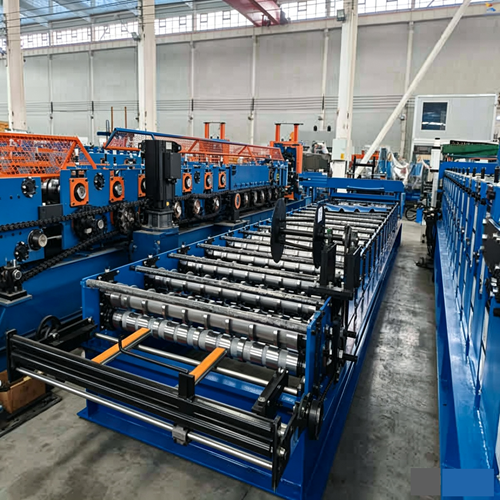

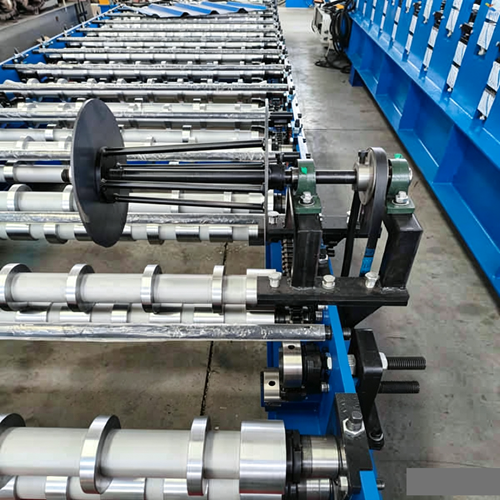

The machine base is integrally welded with heavy standard channel steel and treated by high-temperature stress relief annealing to eliminate welding deformation stress, running without vibration offset during long-time high-speed forming, with stable uniform trapezoidal rib height and effective coverage width. All forming rollers are precision turned solid 45# carbon steel with full surface hard chrome plating after quenching for excellent wear, compression and rust resistance, processing color coated & hot-dip galvanized strips 0.3–0.8mm thick. Multi-group progressive trapezoidal bending roller stands form concave-convex reinforcing ribs in one pass, scratch-free sheet surface without spring-back cracks, tight sheet interlock for outstanding wind and water leakage resistance. Rib height, sheet width and rib spacing can be fully customized per clients’ architectural drawings.

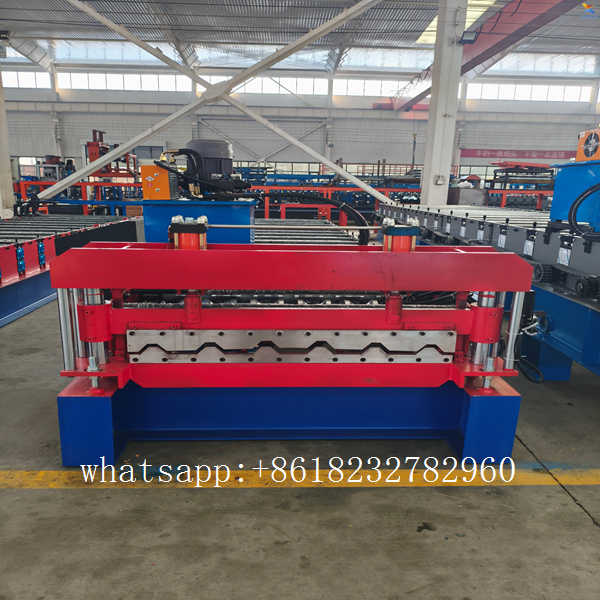

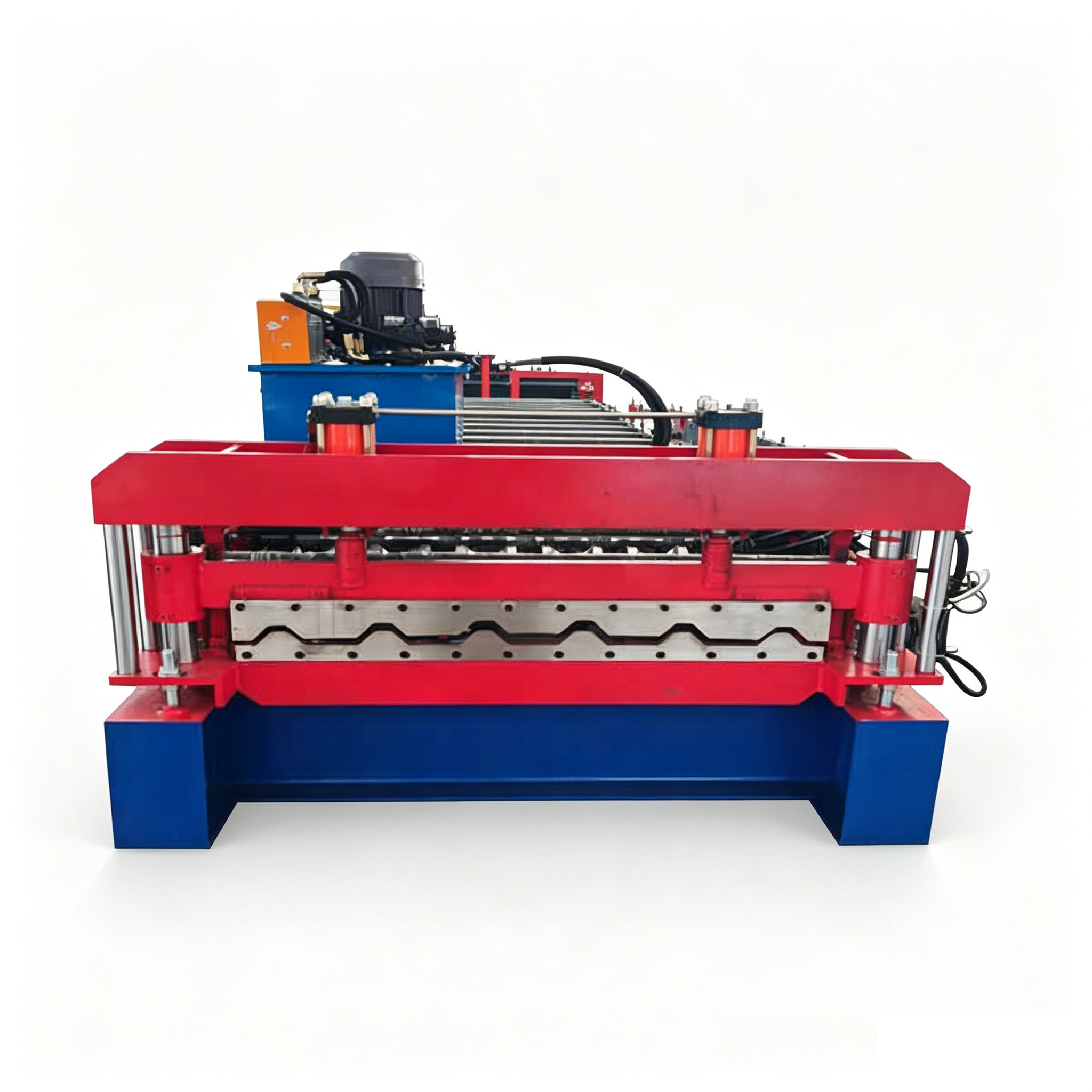

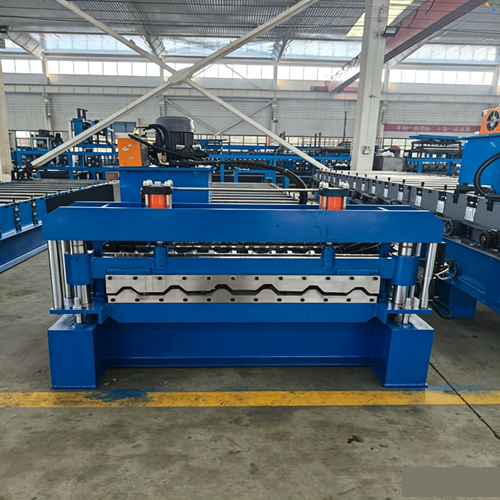

Equipped with high-power variable frequency synchronous chain transmission, no slipping during thick sheet forming, running smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 22 m/min. Heavy-duty manual deviation correction mechanism at feeding inlet steadily centers steel strips to reduce edge waste. Integral vertical hydraulic cutting unit at tail with thickened impact-resistant cutting blades delivers clean burr-free cuts, finished fixed-length tolerance ≤±1mm. Suspended cantilever PLC touch screen control system stores multiple standard tile parameter recipes, automatically completing feeding, trapezoidal rib roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop continuous production.
Every trapezoidal roof panel forming machine undergoes a 72-hour full-load coil endurance test before delivery to calibrate trapezoidal rib arc, sheet width and cutting dimensional tolerance. Complete spare forming rollers, thickened cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase voltage available for all countries, delivery lead time 50–60 days. Overseas buyers can enjoy remote CNC debugging and on-site engineer installation training. This heavy-load industrial trapezoidal tile machine receives bulk orders from steel structure and building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Trapezoidal Roof Panel Machine / Industrial Trapezoidal Metal Roof Sheet Roll Former |
| Category |
Roof Panel Roll Forming Machine > Trapezoidal Sheet Machine |
| Processable Materials |
Color coated steel coil, hot-dip galvanized load-bearing steel strip |
| Applicable Sheet Thickness |
0.3–0.8mm |
| Standard Forming Coverage Width |
840/900/1050mm (custom trapezoidal rib size) |
| Roller Material |
45# carbon steel, precision turned + full quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
18–24 roller stations |
| Speed Control Mode |
Variable frequency independent synchronous stepless speed regulation |
| Forming Running Speed |
8–22 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Integral vertical hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Suspended cantilever full-automatic PLC touch screen control, multi tile recipes stored for one-click switch |
| Overall Dimension |
6500×1020×1280mm |
| Total Machine Weight |
2.2 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
