Xinnuo Trapezoidal Roof Roll Forming Machine is professional cold roll forming equipment for producing trapezoidal metal roof panels. The finished sheets are widely adopted for steel structure workshops, warehouses, agricultural buildings, commercial factory rooftops and various industrial construction projects. The trapezoidal roof panel features excellent drainage performance, high load-bearing capacity and beautiful appearance, which has become one of the most popular roofing materials worldwide. Different from ordinary forming equipment, our machine is optimized for long-cycle continuous industrial production, adapting to high-volume processing demands of metal sheet processing factories.

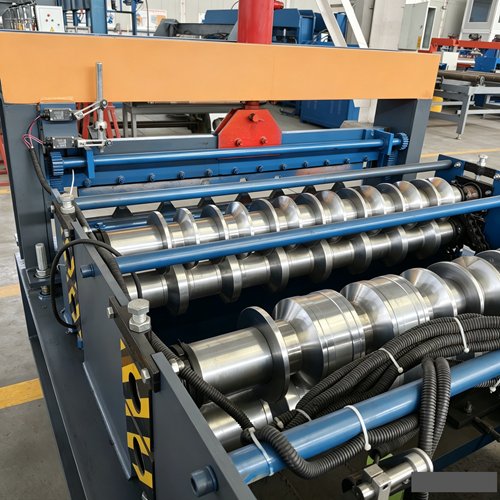

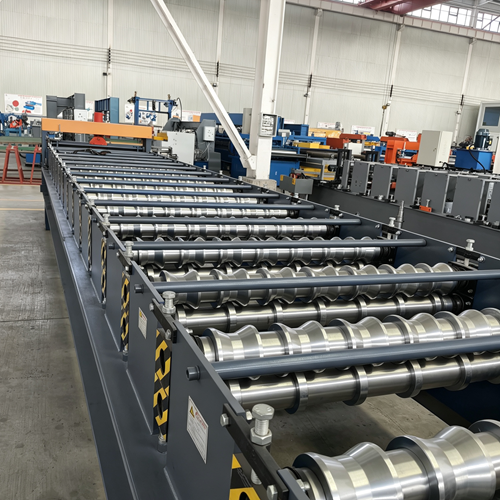

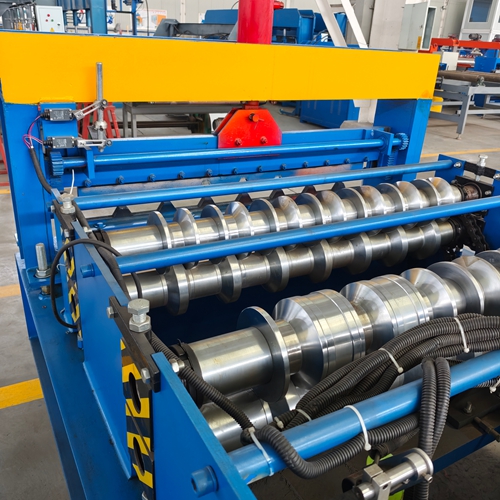

The whole production line can automatically complete raw material feeding, continuous roll forming, hydraulic fixed-length cutting in one continuous workflow. This machine adopts heavy-duty welded base frame to effectively reduce vibration during high-speed operation. All forming rollers are made of high-quality steel with precision machining and surface heat treatment, greatly improving wear resistance and extending service life. It can process galvanized steel, color coated steel coils with stable molding effect, ensuring flat surface and neat profile section of finished roof sheets. The chain transmission system delivers stable power transmission, effectively avoiding slipping and dimensional deviation during high-speed running.

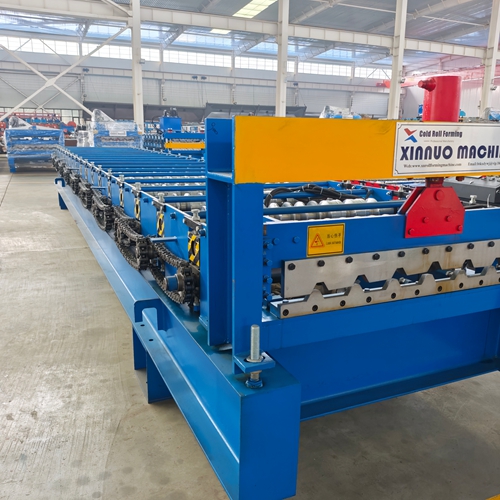

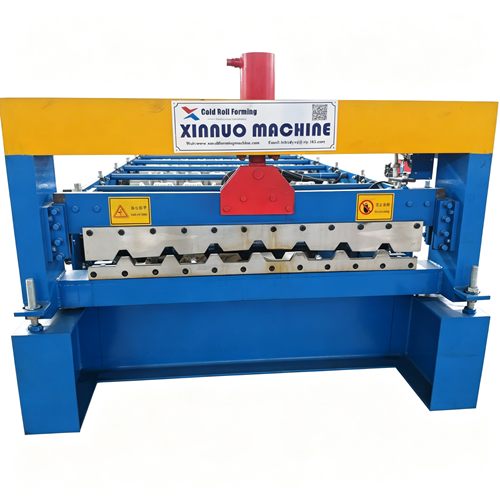

The equipment is equipped with mature PLC touch screen control system. Operators can easily set target cutting length and production parameters on the touch panel. The machine runs automatically after startup, which greatly reduces manual operation and improves production efficiency. The hydraulic cutting system uses high-strength cutting die, which can cut profiles smoothly with few burrs and secondary polishing is not required. The safety protection structure is fully arranged on the whole line to avoid accidental injury during daily operation.
We support customized technical parameters according to customers’ local market requirements, including effective width, sheet thickness and production speed. All core electrical and hydraulic accessories adopt well-known brand components to lower failure rate during long-time continuous operation. Every machine will go through strict no-load and load running inspection before delivery to eliminate potential faults. We can also adjust the overall layout of the production line to match the customer’s factory space layout.
Our professional after-sales service team can provide overseas on-site installation guidance, operator training and long-distance technical support. The standard machine warranty period reaches 2 years. Global metal sheet distributors, steel structure contractors and processing factory owners are welcome to send inquiries. We can offer factory direct price, machine running videos, detailed drawings and tailored solutions.
In addition, we provide complete operation manuals, spare parts catalogs and installation drawings along with each machine, helping clients carry out daily maintenance smoothly. We maintain sufficient stock of common vulnerable parts, so customers can quickly obtain replacements once needed to minimize production downtime. Whether you need a single standalone machine or a complete matched production line with uncoiler, our sales engineers can work out a cost-effective configuration plan based on your actual output budget. We keep flexible communication throughout the whole cooperation process from quotation, production tracking to shipment arrangement to bring you a worry-free purchasing experience.
| Item |
Specification |
| Machine Name |
Trapezoidal Roof Roll Forming Machine |
| Applicable Material |
Color steel coil, galvanized steel coil |
| Material Thickness |
0.3–0.8 mm |
| Production Speed |
8–15 m/min |
| Working Voltage |
380V 50HZ 3Phase (Customizable) |
| Control System |
PLC + Touch Screen Automatic Control |
| Processing Flow |
Feeding → Roll Forming → Hydraulic Cutting |
| Warranty |
2 years |
| Delivery Time |
50–60 working days |
| Payment Term |
30% T/T deposit,70% balance before shipment |
