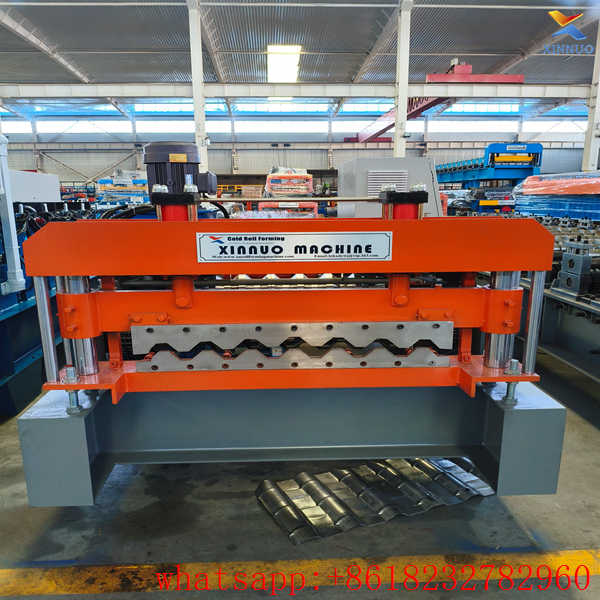

750 trapezoidal roof panel

Profile :

Delivery time:50-60 days

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need

Warranty:2 years for machinery warranty

Whatsapp: +86 18832797029

e-mail: yuankuoduan@gmail.com

Product Description

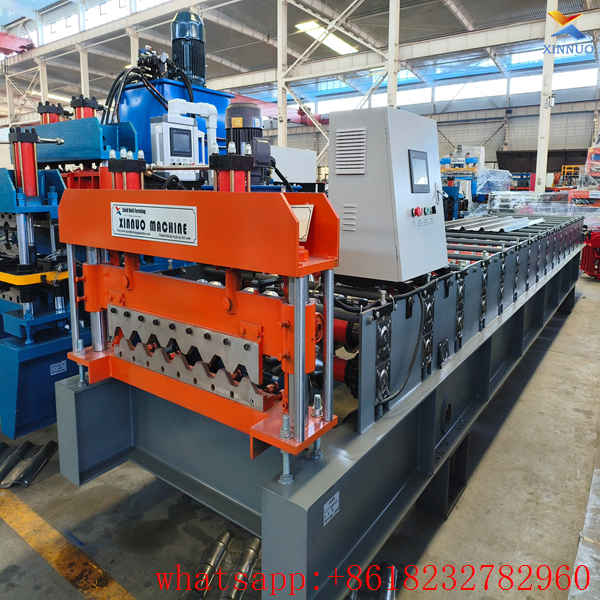

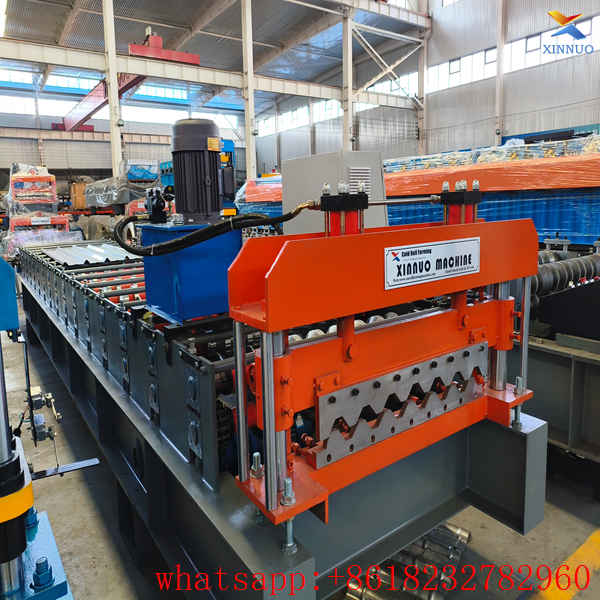

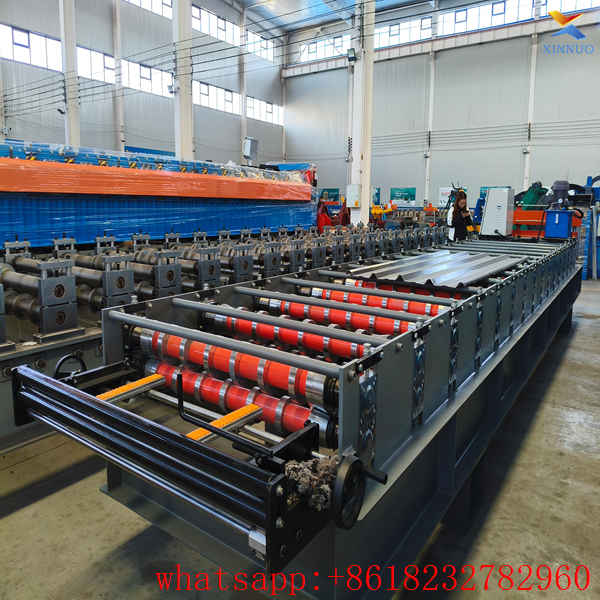

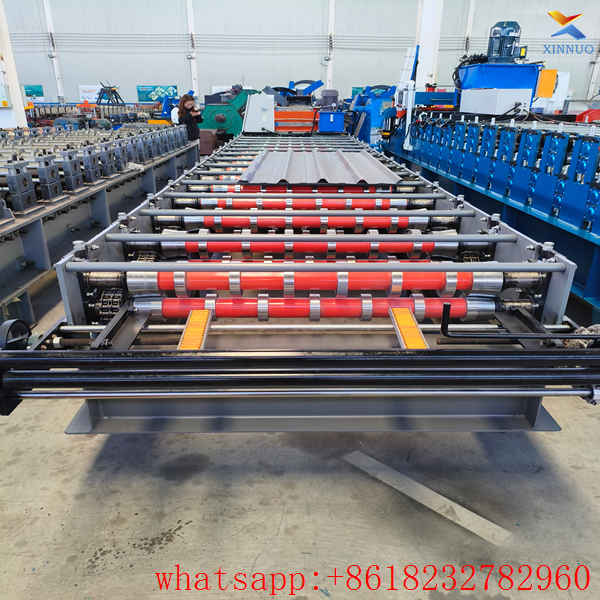

trapezoid iron roofing sheets roll forming machine photos showing :

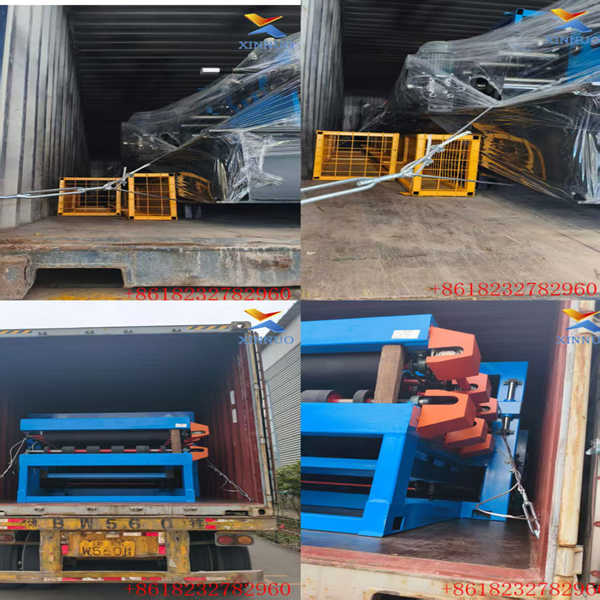

trapezoid iron roofing sheets roll forming machine Packing&Shipping :

– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

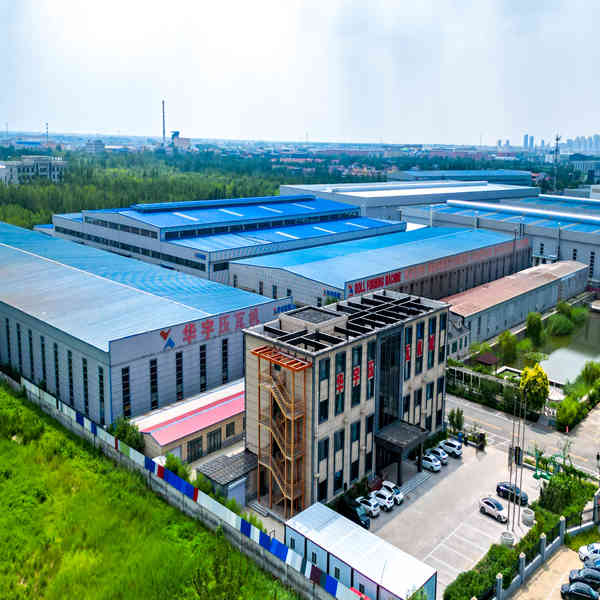

About us -HEBEI XINNUO

We have extensive experience in the needs of different countries, such as profile drawing in CAD,operation language, thickness range, use, installation, Online support,etc.Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.Join between of us ,do our best for each other !

Hebei Xinnuo Roll Forming Machinery Co., Ltd. has specialized in R&D and global export of roof cold roll forming machines for more than ten years. The 750 trapezoidal roof panel machine belongs to the Roof Panel Roll Forming Machine category. It produces trapezoidal metal roof sheets with 750mm effective covering width. The profile features moderate wave height with balanced load-bearing and drainage performance. It is mainstream equipment for producing roof materials of factories, warehouses, breeding sheds, market stalls and small steel buildings in China and Southeast Asia, and can be matched with feeding racks and levelers to form a complete automatic production line.

The machine base frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing, ensuring vibration-free stable operation without deformation during long-hour high-speed continuous production. All forming rollers are precisely machined from solid 45# carbon steel with quenched thick hard chrome plating, featuring high hardness and excellent wear & rust resistance without scratching the coating of color steel or galvanized sheets. Multi-stage progressive rolling forms neat trapezoidal ribs and flat sheets with tight joints, delivering reliable rainproof performance. It processes color coated and galvanized steel coils from 0.3mm to 0.8mm thick, with standard raw material feeding width 1000mm to make finished panels of 750mm coverage width.

Equipped with variable frequency main motor and heavy-duty synchronous chain transmission, the machine runs smoothly with low noise, and forming speed can be steplessly adjusted from 8 m/min to 18 m/min. Multiple guiding limit rollers and manual adjusting handwheels are installed at the feeding inlet to automatically correct steel strip position and avoid defective products caused by offset. An independent hydraulic flying shear cutting unit is mounted at the tail with stable oil pressure, providing smooth burr-free cutting surfaces and dimensional tolerance limited within ±1mm. The suspended cantilever PLC touch screen control system allows operators to preset finished length and total output quantity. The machine automatically completes feeding, roll forming, fixed-length cutting and counting without extra labor. Only one worker can realize 24-hour non-stop continuous production, greatly cutting labor cost and raw material waste.

Every 750 trapezoidal roof tile machine undergoes a 72-hour full-coil test before delivery to calibrate forming precision and cutting tolerance. A full set of spare forming rollers, hydraulic sealing parts, Chinese-English bilingual operation drawings and manuals are delivered as standard accessories. Xinnuo offers a 2-year full machine warranty. Overseas buyers can get remote technical debugging and on-site installation & training by professional engineers. Reliable, cost-effective performance makes this machine popular among building material manufacturers worldwide.
