1070 Color Steel Tile Roll Forming Machine
This 1070 color steel tile roll forming machine belongs to trapezoidal sheet machine subcategory under roof panel roll forming machine series, dedicated cold bending equipment for wide-size 1070 effective width trapezoidal roof sheets. With large-span high trapezoidal ribs, it features better load-bearing and drainage performance than standard 980/1020 profiles, widely used for large factories, logistics warehouses, livestock greenhouses and big farm market long-span roof projects.
Compatible with 0.3–0.8mm color coated & hot-dip galvanized steel strips. It can work as single independent unit or match glazed tile rollers to form double layer machine, and cooperate with electric decoiler to build full automatic continuous production line.

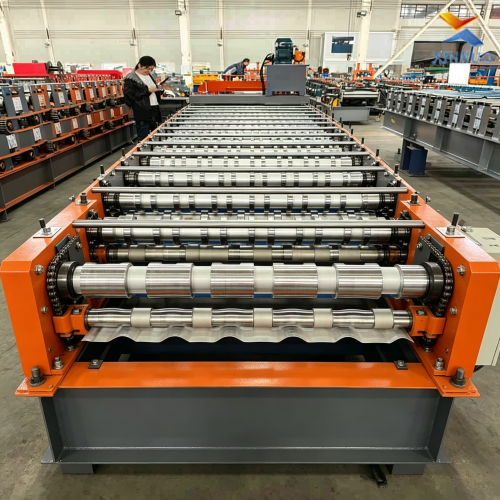

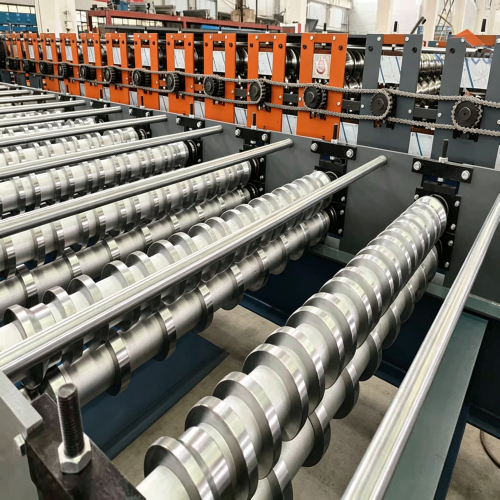

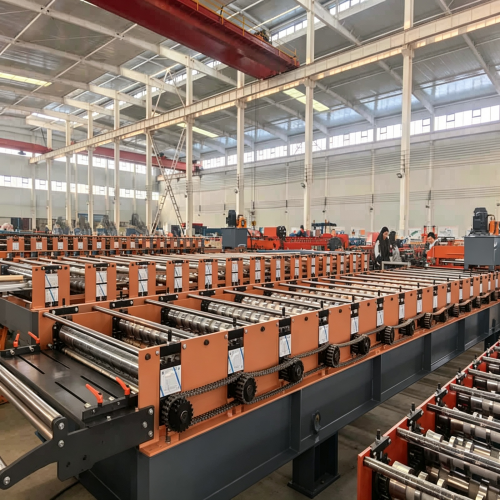

The machine base is integrally welded with heavy standard channel steel and treated by high-temperature stress relief annealing to eliminate welding internal stress. The long frame runs without vibration offset during long-time heavy-load high-speed forming, keeping stable uniform trapezoidal rib height and effective sheet width. All forming rollers are precision turned solid 45# carbon steel with full hard chrome plating after surface quenching for outstanding wear, compression and corrosion resistance. Multi-group progressive trapezoidal bending roller stands form concave-convex load-bearing stiffening ribs in one feeding stroke, scratch-free sheet surface without spring-back cracks. Tight interlock between tiles provides excellent roof wind resistance and rain seepage prevention performance, rib height and tooth pitch fully adjustable per customers’ structural drawings.

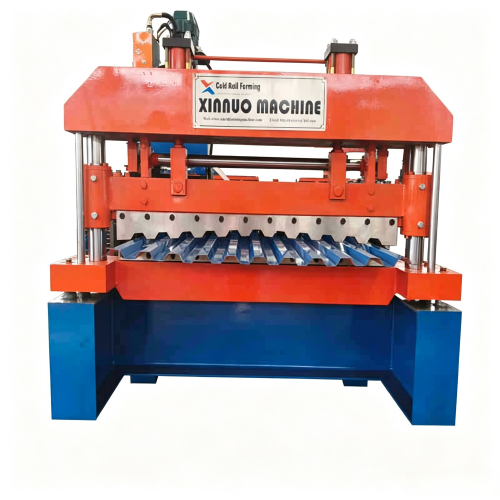

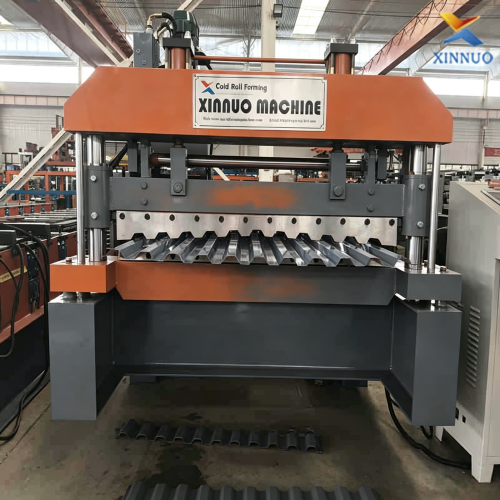

Equipped with high-power variable frequency synchronous chain transmission, no slipping during forming both thin and thick sheets, running smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 22 m/min. Heavy-duty double-side manual deviation correction at feeding inlet steadily centers steel strips to reduce edge material waste. Integral vertical heavy hydraulic cutting unit at tail with thickened wear-resistant blades fits all types of color steel sheets, delivering burr-free & distortion-free cut ends, finished fixed-length tolerance ≤±1mm. Separate external PLC electric cabinet + touch screen control system stores standard 1070 wide profile parameter recipes, automatically completing feeding, trapezoidal rib roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop mass production.
Every 1070 trapezoidal tile forming machine undergoes a 72-hour full-load coil endurance test before delivery to calibrate trapezoidal wave arc, effective width and cutting dimensional tolerance. Complete spare forming rollers, thickened cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase industrial voltage available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This wide large-span industrial roof tile forming equipment receives bulk orders from steel structure engineering and building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
1070 Color Steel Tile Roll Forming Machine / Wide Large Span Trapezoidal Roof Sheet Forming Equipment |
| Category |
Roof Panel Roll Forming Machine > Trapezoidal Sheet Machine |
| Processable Materials |
Color coated steel coil, hot-dip galvanized load-bearing steel strip |
| Applicable Sheet Thickness |
0.3–0.8mm |
| Effective Forming Coverage Width |
1070mm (custom trapezoidal rib height & tooth pitch) |
| Roller Material |
45# carbon steel, precision turned + full quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
18–24 roller stations |
| Speed Control Mode |
Variable frequency independent synchronous stepless speed regulation |
| Forming Running Speed |
8–22 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Integral vertical heavy hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
Independent external PLC electric cabinet + touch screen full-automatic NC, standard 1070 profile recipes stored for one-click call |
| Overall Dimension |
6600×1080×1300mm |
| Total Machine Weight |
2.3 Tons |
| Warranty Period |
2 years full machine warranty |
| Delivery Lead Time |
50–60 days |
