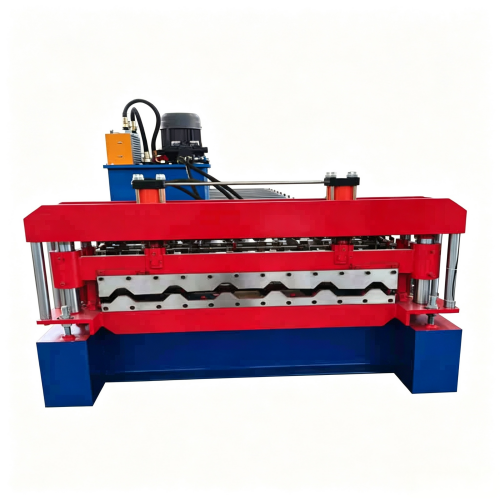

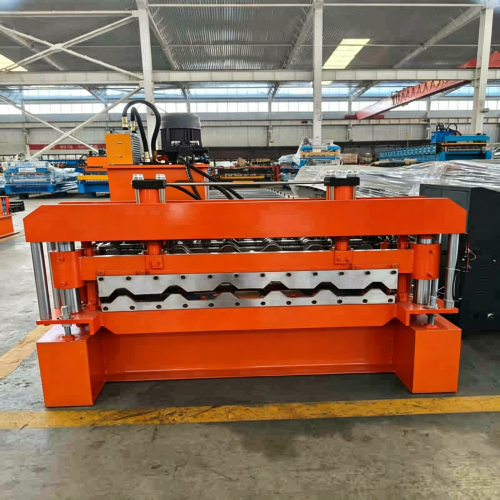

980 Color Steel Roll Forming Machine
This 980 color steel roll forming machine belongs to trapezoidal sheet machine subcategory under roof panel roll forming machine series, dedicated cold bending equipment for standard 980 effective width trapezoidal roof sheets. The medium-high trapezoidal rib design delivers fast drainage and strong wind uplift resistance, widely used for waterproof roof cladding of steel workshops, warehouses, farm markets, agricultural greenhouses and prefab cabins.
Compatible with 0.3–0.8mm printed color coated strips and hot-dip galvanized steel strips. It can operate as single independent unit or match glazed tile rollers to form double layer machine, and work with electric decoiler to build full automatic production line.

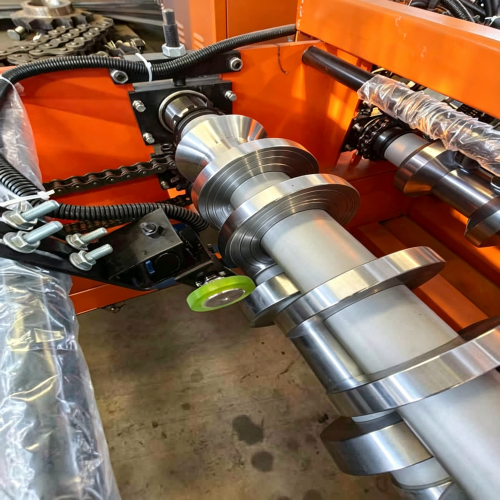

The machine base is integrally welded with heavy standard channel steel and treated by high-temperature stress relief annealing to eliminate welding internal stress, stable dimensions without vibration during long-term high-speed continuous forming. All forming rollers are precision turned solid 45# carbon steel with full hard chrome plating after quenching for superior wear and rust resistance, scratch-free forming for printed decorative sheets. Multi-group progressive trapezoidal bending roller stands form concave-convex load-bearing stiffening ribs in one feeding stroke with minimal spring-back. Tight interlock between tiles prevents roof water leakage. Rib height, tooth pitch and effective width fully adjustable per customers’ construction drawings.

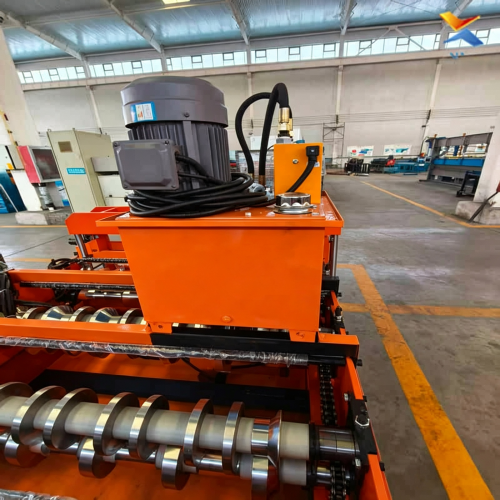

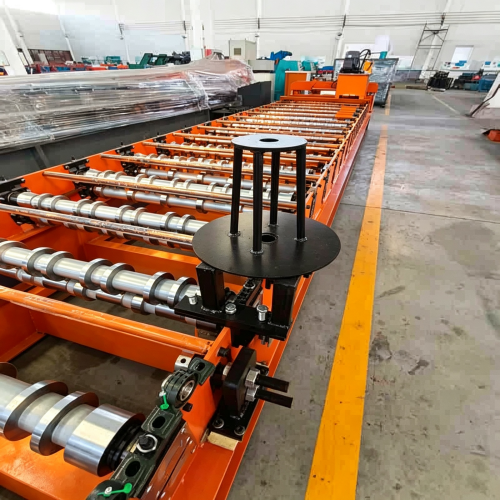

Equipped with variable frequency synchronous chain transmission, running smoothly with low noise, forming speed steplessly adjustable from 8 m/min to 22 m/min. Manual deviation correction mechanism at feeding inlet keeps steel strips centered to avoid printed pattern misalignment and material waste. Integral vertical hydraulic cutting unit at tail with thickened special blades fits thin printed color steel sheets, delivering clean burr-free cut ends, finished fixed-length tolerance ≤±1mm. Separate PLC touch screen control cabinet stores standard 980 profile parameter recipes, automatically completing feeding, trapezoidal rib roll forming, fixed-length cutting and yield counting. Only one operator can realize 24-hour non-stop continuous production.
Every 980 trapezoidal tile forming machine undergoes a 72-hour coil endurance test before delivery to calibrate trapezoidal wave arc, sheet width and cutting tolerance. Complete spare forming rollers, cutting blades, hydraulic sealing parts and bilingual machine operation & maintenance manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, customized three-phase industrial voltage available for all countries, delivery lead time 50–60 days. Remote installation & debugging guidance is accessible for overseas buyers. This standard industrial roof tile forming equipment receives bulk orders from building material manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
980 Color Steel Roll Forming Machine / Standard Trapezoidal Roof Sheet Forming Equipment |
| Category |
Roof Panel Roll Forming Machine > Trapezoidal Sheet Machine |
| Processable Materials |
Printed color coated steel coil, color & hot-dip galvanized steel strip |
| Applicable Sheet Thickness |
0.3–0.8mm |
| Effective Forming Coverage Width |
980mm (custom trapezoidal rib height & tooth pitch) |
| Roller Material |
45# carbon steel, precision turned + full quenched hard chrome plating wear-resistant treatment |
| Number of Forming Stands |
18–24 roller stations |
| Speed Control Mode |
Variable frequency independent synchronous stepless speed regulation |
| Forming Running Speed |
8–22 m/min |
| Main Motor Power |
5.5kW |
| Cutting System |
Integral vertical hydraulic fixed-length cutting |
| Dimensional Tolerance |
Finished length error ≤±1mm |
| Control System |
PLC touch screen full-automatic NC, standard 980 tile recipes stored for one-click switch |
| Overall Dimension |
6500×1030×1280mm |
| Total Machine Weight |
2.2 Tons |
| Warranty Period |
2 years full machine warranty |
| Delivery Lead Time |
50–60 days |
