Electric Decoiler

Profile :

Delivery time:50-60 days

Payment:30% T/T deposit,70% balance before shipping

Voltage:380V 50HZ 3Phase or based on customer’s need

Warranty:2 years for machinery warranty

Whatsapp: +86 18832797029

e-mail: yuankuoduan@gmail.com

Product Description

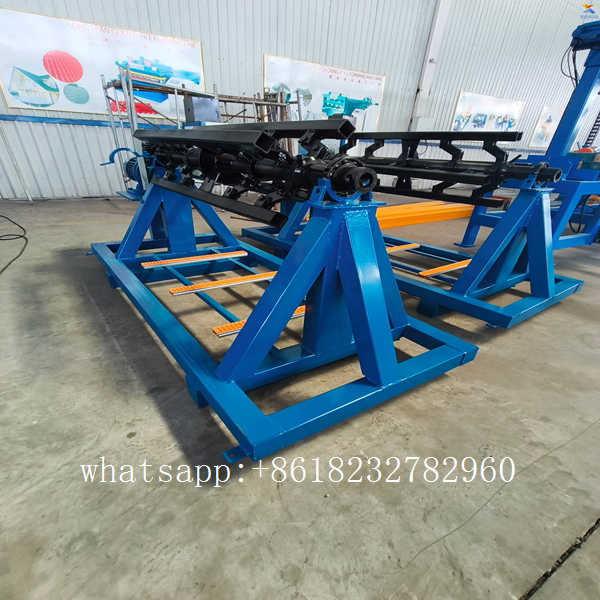

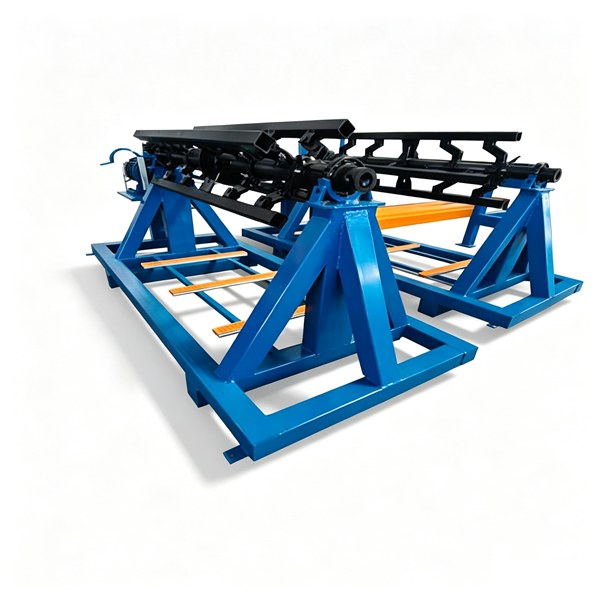

Electric Decoiler

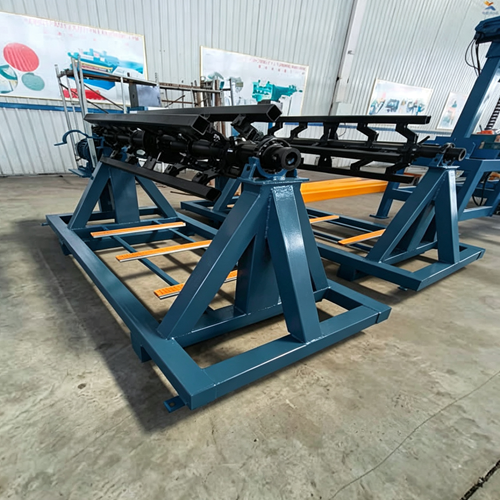

Electric-Decoiler

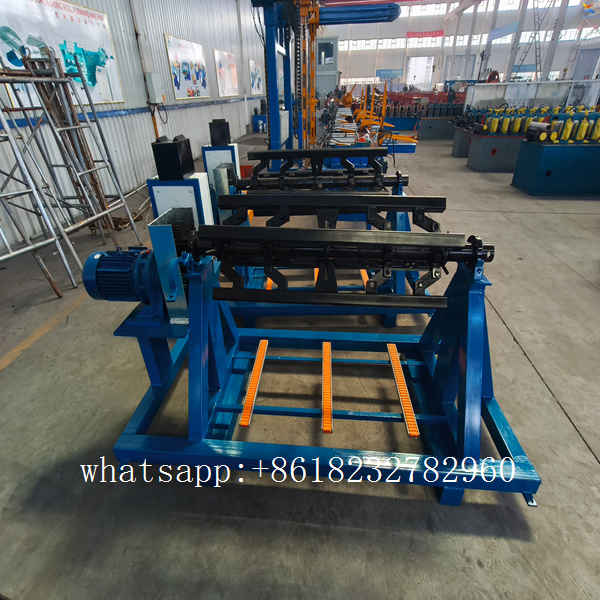

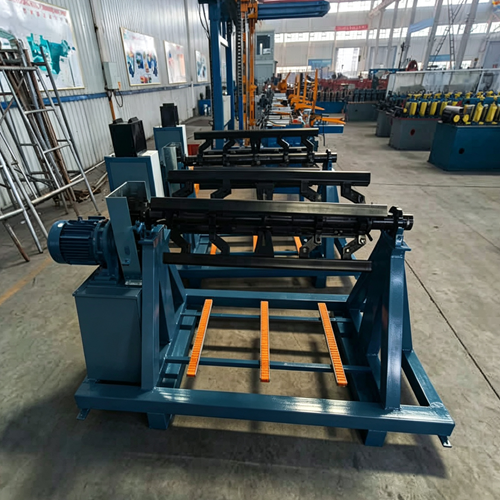

This electric decoiler, also named automatic coil feeding rack, belongs to feeding rack auxiliary equipment category. It matches color steel tile roll forming machines, floor deck machines, glazed tile machines and standing seam roof panel machines. It holds metal coils and releases strips at uniform automatic speed, replacing manual feeding to realize fully automatic continuous feeding for the whole production line.

Compatible with color coated coils, hot-dip galvanized coils and Al-Mg-Mn alloy coils. Standard load capacity options are 3 tons and 5 tons, fit coil inner diameter 480–530mm, coil width customizable from 800mm to 1250mm according to customer main machines.

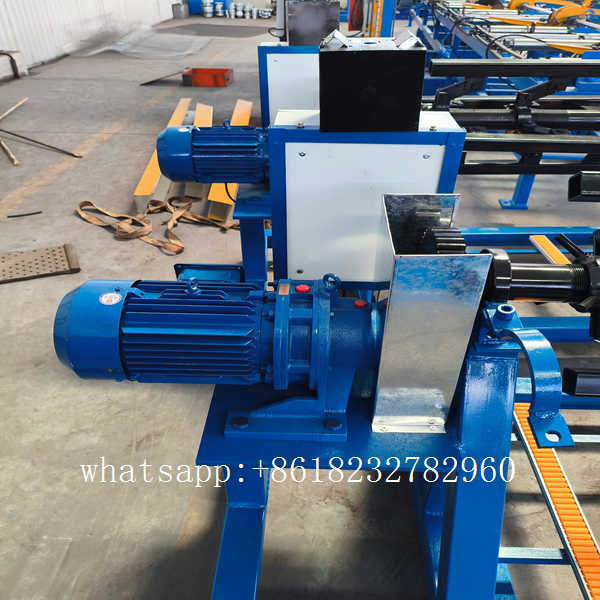

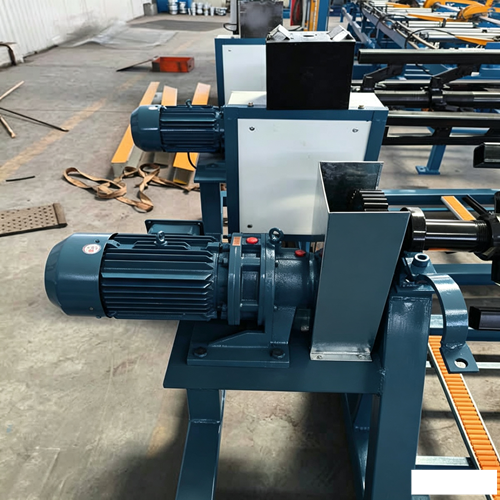

The machine base is integrally welded with thick square tube and channel steel, reinforced triangular support structure for stable heavy load without deformation. Equipped with high-power reduction motor & variable frequency speed control system, it can synchronize speed with main forming machine, automatically matching feeding speed to avoid strip pulling, material stacking and surface scratch.

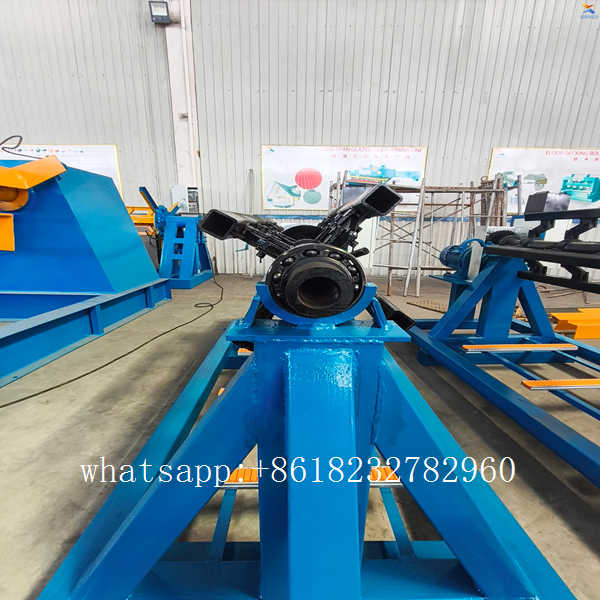

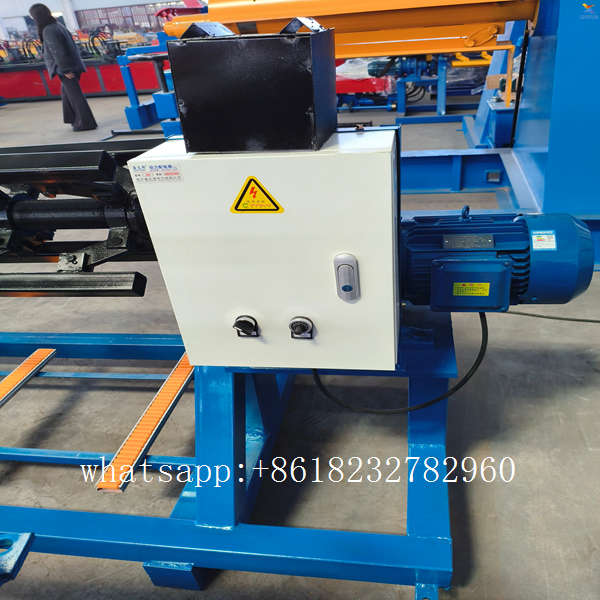

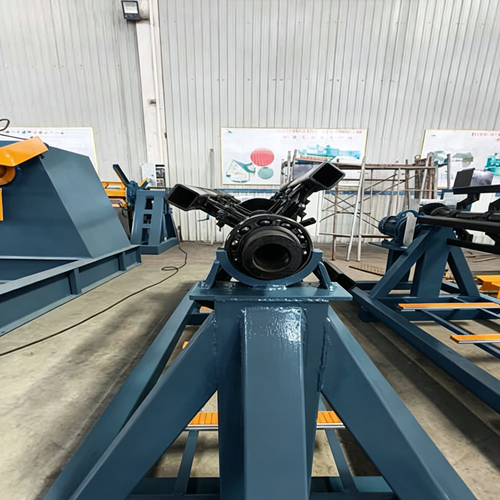

The main shaft adopts expandable tension structure, electric expansion (hydraulic expansion optional) to fix coils for easy loading & unloading. Two side limiting baffle plates prevent coil left-right offset to guarantee straight feeding. Independent electric control box includes start/stop, forward/reverse and variable frequency speed functions. Equipped with photoelectric sensor to realize automatic start & stop, auto stop when coil runs out, cutting labor attendance cost.

It can be separately matched with single-layer tile machines, double / triple layer roll formers, floor deck machines, ridge cap machines and angle lock machines. It can also work together with leveling machines to form full auto uncoiling-leveling-forming production line. Simple and durable structure, easy to install & maintain, with anti-rust & anti-corrosion surface treatment for long-term workshop outdoor use.

2-year full machine warranty, delivery lead time 50–60 days, customized three-phase voltage 380V/415V/220V available, remote installation & debugging guidance offered for overseas buyers.

Parameter Item	Specification
Model Name	Electric Decoiler / Automatic Electric Coil Feeding Rack
Category	Feeding Rack / Coil Uncoiler Machine Accessories
Compatible Coils	Color coated steel coil, galvanized coil, Al-Mg-Mn alloy coil
Max Load Capacity	3 Ton / 5 Ton Optional
Fit Coil Inner Diameter	480–530mm
Fit Coil Width	800/1000/1200/1250mm Customized
Drive System	Reduction motor + VFD variable frequency drive
Speed Control	Synchronous variable frequency linked with main machine
Tension Structure	Electric expandable spindle (hydraulic optional)
Control System	Separate electric cabinet, photoelectric auto start-stop
Surface Treatment	Sand blasting rust removal + industrial anti-rust paint coating
Overall Dimension	3200×1450×1300mm (3T model)
Total Machine Weight	1.2T / 1.6T
Warranty Period	2 years full machine warranty
Delivery Lead Time	50–60 days
