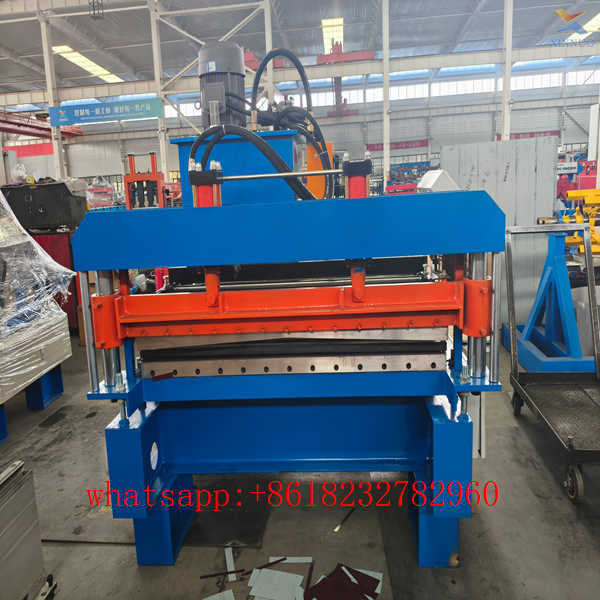

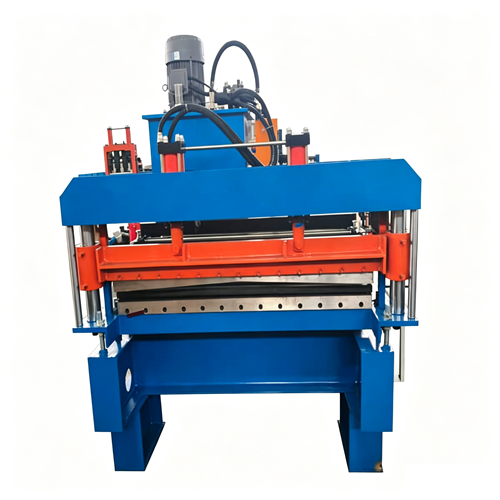

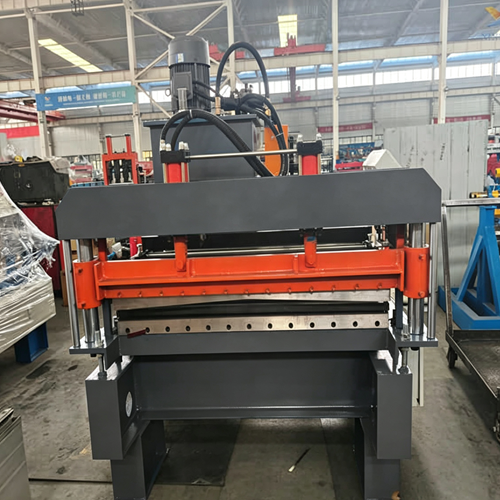

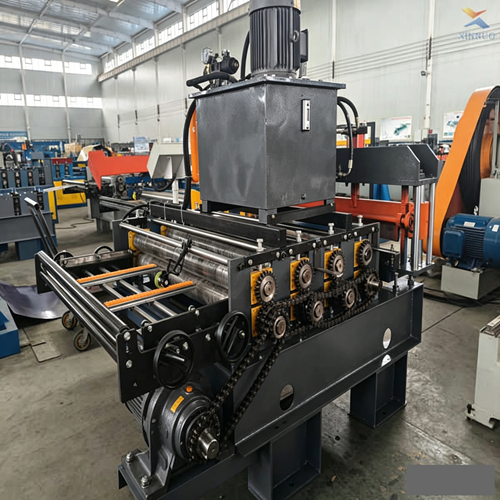

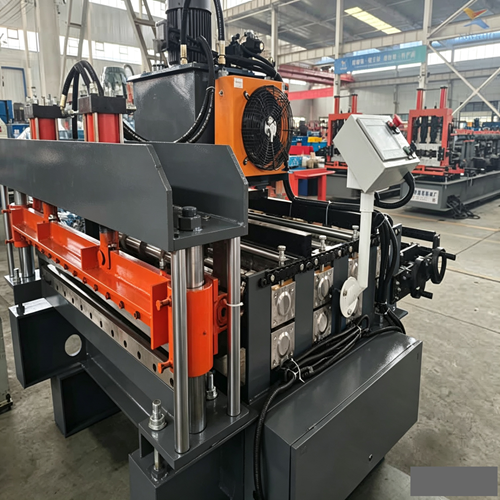

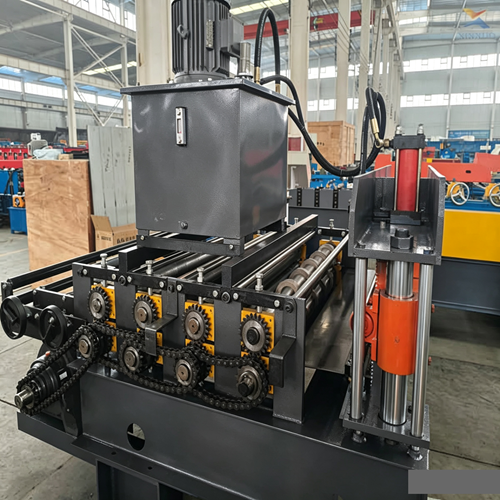

Slitting & Separation Equipment
This slitting & separation equipment is classified under Metal Coil Slitting Line, integrated longitudinal slitting machine combining leveling, slitting and separating functions. It is specially designed for precise slitting of color steel, galvanized, Al-Mg-Mn and stainless steel coils, cutting wide raw material into multiple equal-width narrow strips in one pass. It acts as front-end processing equipment for tile roll forming, light keel, anti-slip embossed plate and rolling shutter production lines, and can form full automatic slitting production line matched with uncoiler, widely used in sheet metal, steel structure and new energy building material factories.

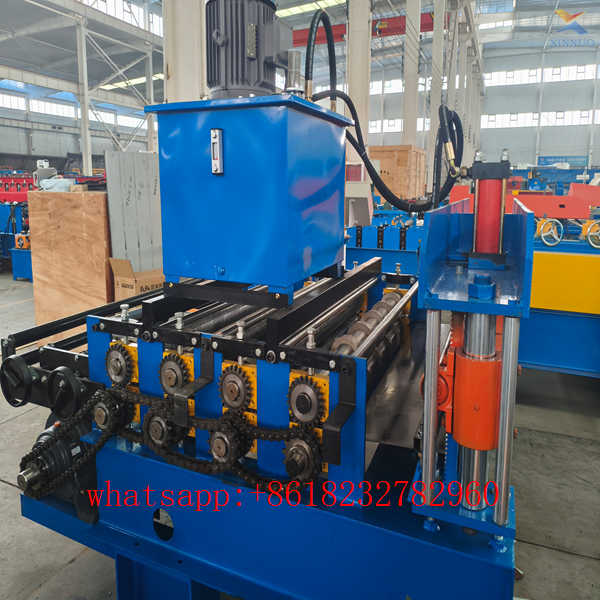

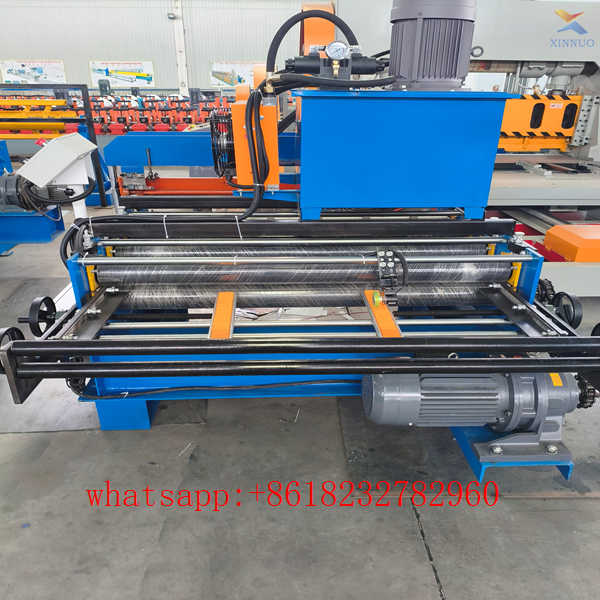

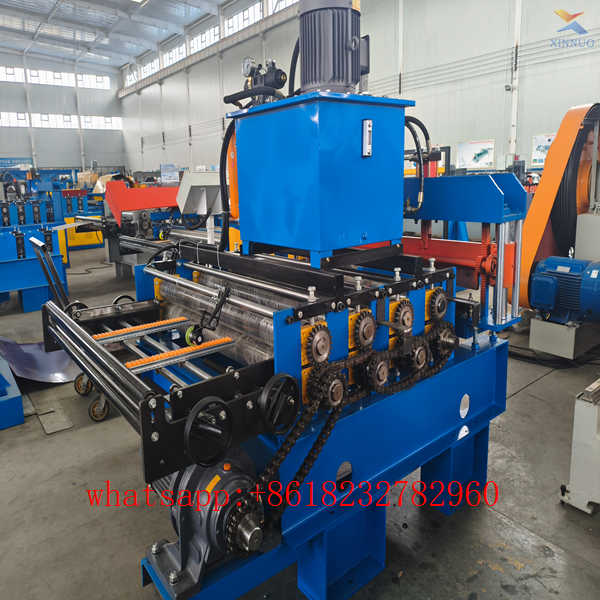

The machine frame is integrally welded with thick heavy H-beam steel and stress-relieved by high-temperature annealing after welding, avoiding deformation and vibration during long-time heavy-load continuous slitting to keep stable strip width precision. Upper and lower slitting shafts are integrally forged and tempered from 40Cr alloy steel, slitting blades treated by deep quenching & mirror precision grinding for high hardness and long wear life. Slitted strips feature smooth burr-free edges without curling or coating scratch. Blade spacing is quickly adjustable to set any custom strip width, compatible with thin & medium metal sheets from 0.3mm to 3.0mm thick, standard feeding width 1000/1250/1500mm. Multiple heavy leveling rollers installed at front eliminate warp and wave wrinkles before slitting to guarantee uniform flatness of all narrow strips.

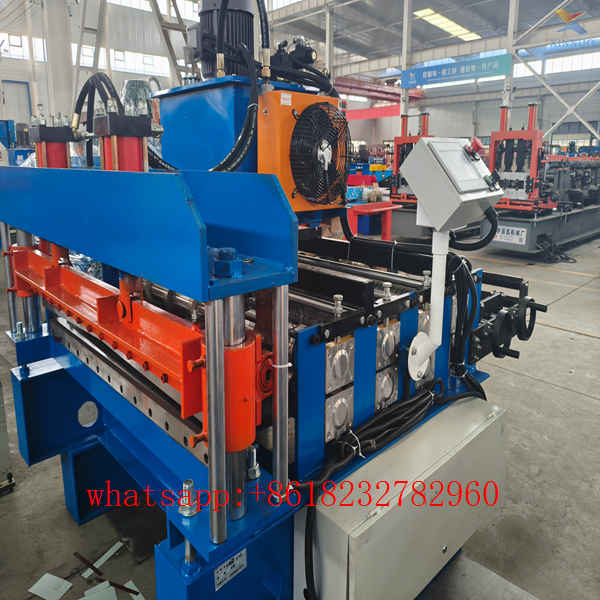

Equipped with high-power variable frequency main motor and heavy-duty synchronous gear transmission, the machine outputs sufficient torque without slipping during thick sheet slitting, running speed steplessly adjustable from 5 m/min to 20 m/min. Dual front & rear bidirectional hydraulic clamping & deviation correcting mechanism holds steel strips fully to prevent offset, stacking and wrinkling, greatly reducing material waste. Independent PLC touch screen numerical control system allows presetting slitting quantity, single strip width and total processing length. The machine automatically completes uncoiling feeding, leveling, longitudinal slitting, separating discharging and yield counting. Only one operator can realize 24-hour non-stop continuous production without secondary manual strip sorting, drastically improving processing efficiency.
Every integrated slitting & separation machine undergoes a 72-hour full-load coil endurance test before delivery to calibrate shaft parallelism and slitting dimensional tolerance. Complete spare slitting blades, adjusting tooling, hydraulic sealing parts and bilingual operation manuals are provided as standard accessories. Xinnuo offers a 2-year full machine warranty, industrial voltage customization available for all countries, delivery lead time 50–60 days. Remote CNC debugging and on-site operation training by professional engineers are accessible for overseas buyers. This all-in-one high-efficiency slitting equipment gains consistent repeat orders from global metal profile supporting manufacturers.
| Parameter Item |
Specification |
| Model Name |
Slitting & Separation Equipment / Integrated Metal Coil Slitter Line |
| Category |
Metal Coil Slitting Line |
| Processable Materials |
Color coated coil, galvanized strip, Al-Mg-Mn alloy, thin stainless steel |
| Applicable Sheet Thickness |
0.3–3.0mm |
| Max Feeding Width |
1000/1250/1500mm (custom wider size available) |
| Slitting Blades |
Integrally forged 40Cr alloy steel blades, deep quenching wear-resistant, quick adjustable spacing |
| Integrated Functions |
Front multi-roller leveling, longitudinal slitting, automatic separation & discharging all-in-one |
| Speed Control Mode |
High-power variable frequency stepless speed regulation |
| Slitting Running Speed |
5–20 m/min |
| Main Motor Power |
7.5–15kW (selected by coil width & sheet thickness) |
| Clamping & Correction System |
Dual front & rear bidirectional synchronous hydraulic anti-offset stacking clamping |
| Control System |
Independent full-automatic PLC touch screen interlock numerical control |
| Overall Dimension |
4200×1550×1480mm (varies by coil width) |
| Total Machine Weight |
3.8–5.2 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
