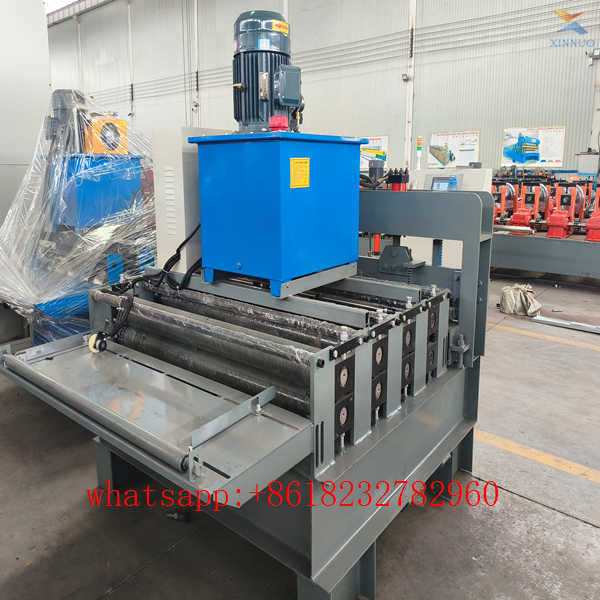

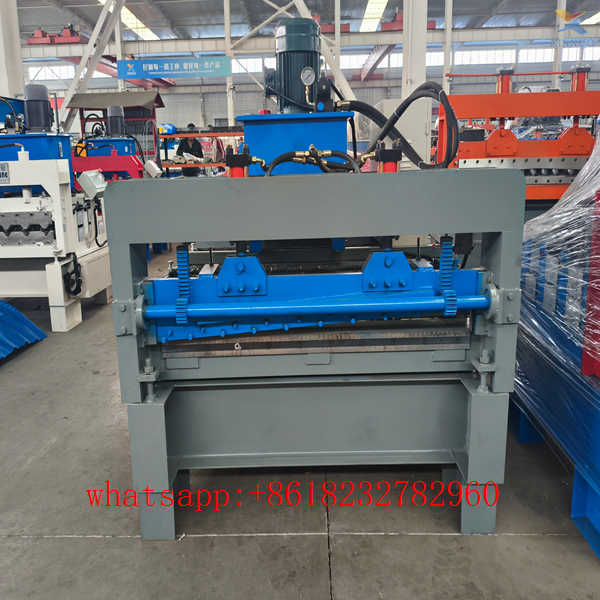

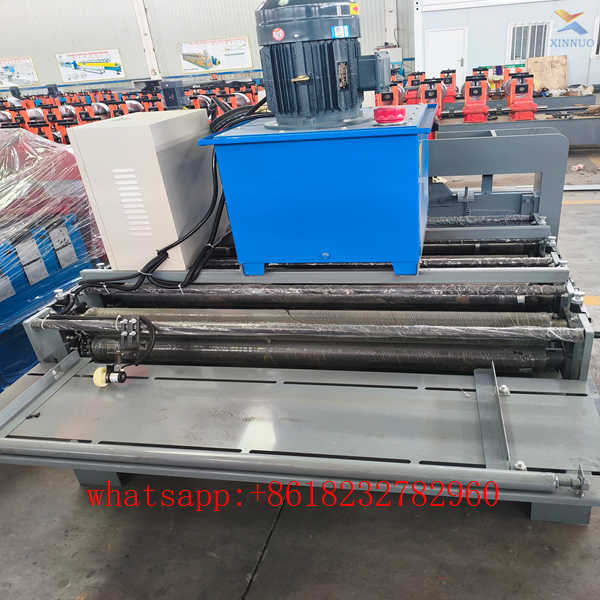

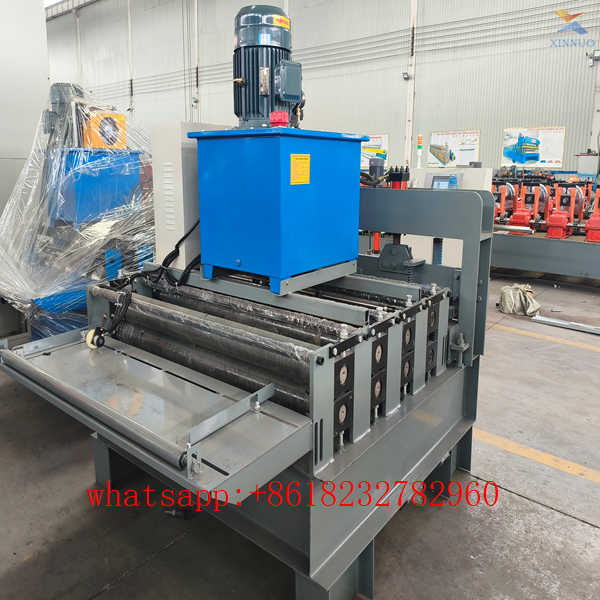

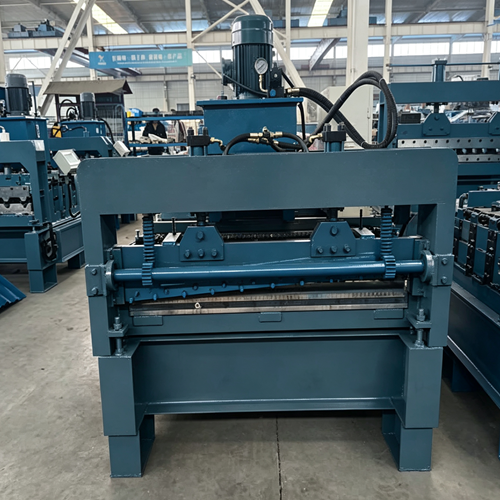

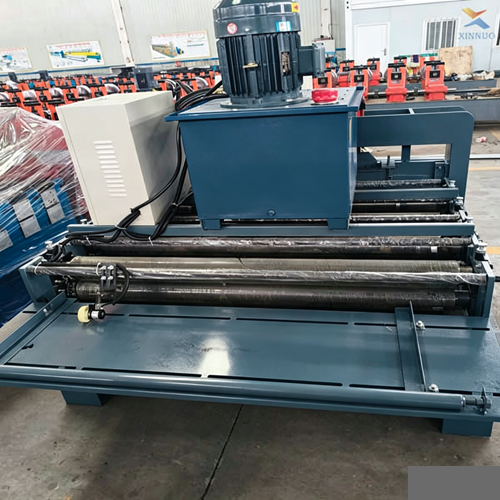

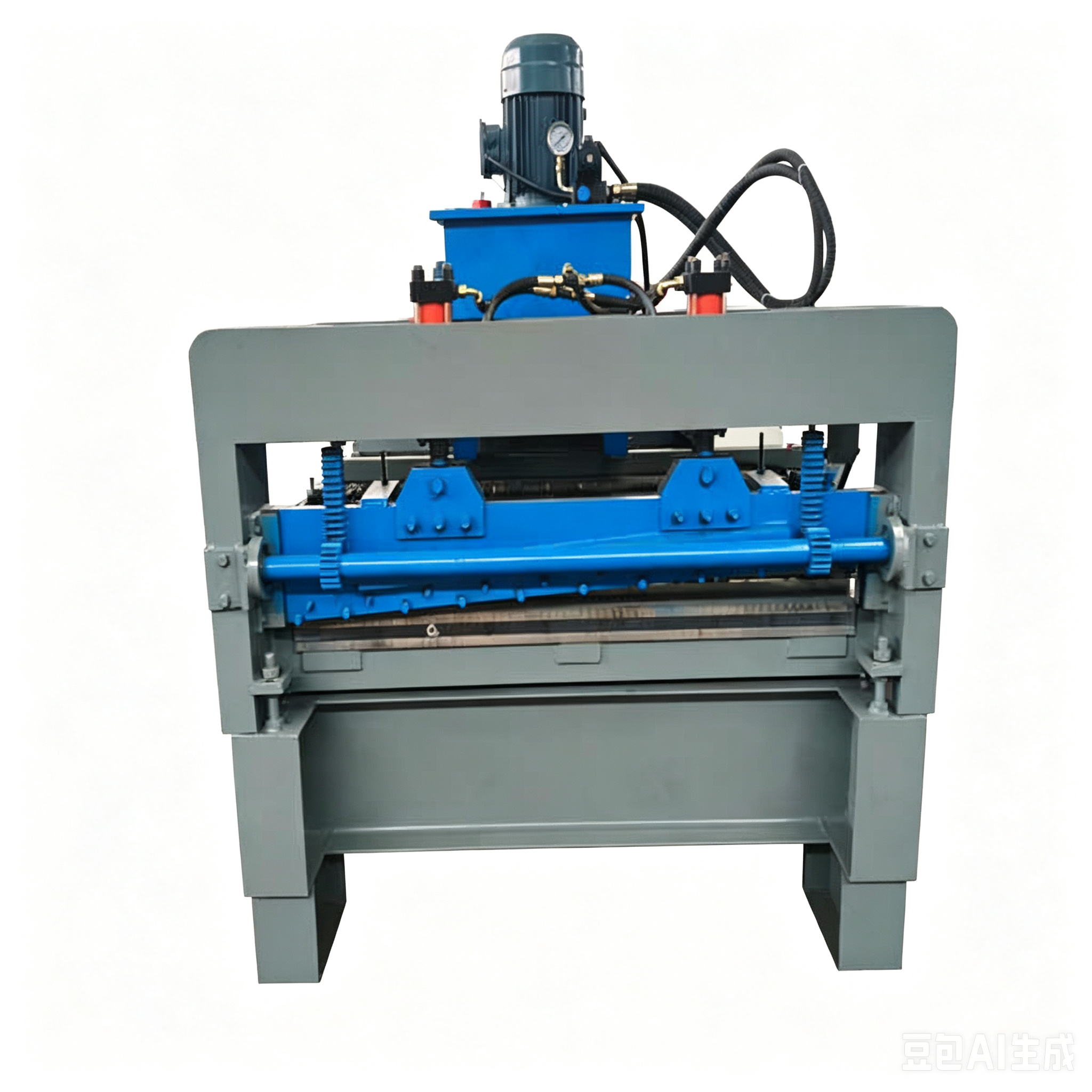

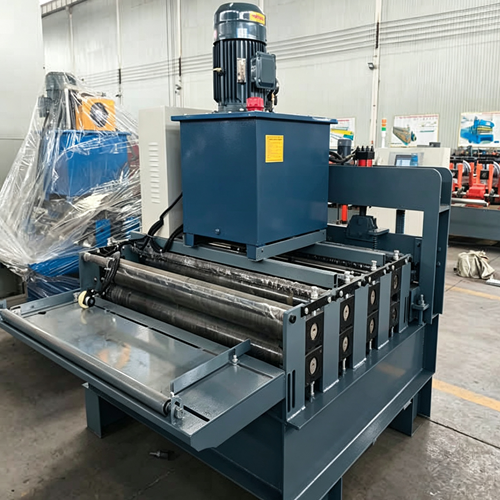

Sheet Metal Slitting Equipment
This sheet metal slitting equipment is categorized under Metal Coil Slitting Line, essential auxiliary front-end machine for color steel tile, light keel, rolling shutter and steel structure production lines. It longitudinally slits wide metal coils into multiple narrow strips, compatible with color steel, galvanized, aluzinc and thin stainless steel sheets. It can be matched with uncoiler and recoiler to form a full automatic slitting line, widely used in all kinds of sheet metal and roof profile factories.
The machine frame is integrally welded with thick steel plates and stress-relieved after welding, the heavy-duty frame keeps stable without deformation under long-time heavy coil operation. Slitting shafts are made of premium tempered alloy steel, slitting blades quenched and precision ground with sharp wear-resistant edges. Slitted sheets come burr-free, no curling or surface scratch. Blade spacing can be quickly adjusted to produce narrow strips of various widths, processing thin metal coils from 0.3mm to 3.0mm thick, max feeding width customizable at 1000/1250/1500mm. Equipped with flattening mechanism to level sheets before slitting and guarantee dimensional precision of strips.
Equipped with variable frequency speed control, running speed adjustable steplessly from 5 m/min to 20 m/min. Hydraulic pressing unit firmly clamps sheets to avoid strip offset and shifting during cutting. Simple PLC electric control panel with intuitive operation for easy training of new operators, supporting synchronous start-stop with front uncoiler and rear recoiler for continuous non-stop slitting. Compact structure saves workshop space and is convenient for sea container shipment, ideal for small & medium processing plants.
Every metal slitting machine passes no-load and full-coil cutting test before delivery, wear-resistant blades and hydraulic seals are adopted as standard parts. Complete set of spare slitting blades, adjusting tools and bilingual operation manuals are included in delivery package. Xinnuo offers a 2-year full machine warranty, remote installation & debugging guidance available for overseas buyers. This cost-effective slitting auxiliary machine gains wide recognition from global metal profile supporting manufacturers.
| Parameter Item |
Specification |
| Model Name |
Sheet Metal Slitting Equipment / Metal Coil Slitter Machine |
| Category |
Metal Coil Slitting Line |
| Processable Materials |
Color coated steel, galvanized coil, aluzinc sheet, thin stainless steel |
| Applicable Sheet Thickness |
0.3–3.0mm |
| Max Feeding Width |
1000/1250/1500mm (customizable) |
| Slitting Blades |
Quenched & precision ground alloy steel blades, adjustable spacing |
| Flattening System |
Multi-group upper & lower pressing leveling rollers to eliminate sheet warp |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Slitting Running Speed |
5–20 m/min |
| Main Motor Power |
5.5–11kW (selected by coil width) |
| Pressing System |
Automatic hydraulic pressing to prevent strip deviation |
| Control System |
Simple PLC interlock electric control |
| Overall Dimension |
3200×1400×1350mm (varies by coil width) |
| Total Machine Weight |
2.8–4.2 Tons |
| Warranty Period |
2 years for complete machine |
