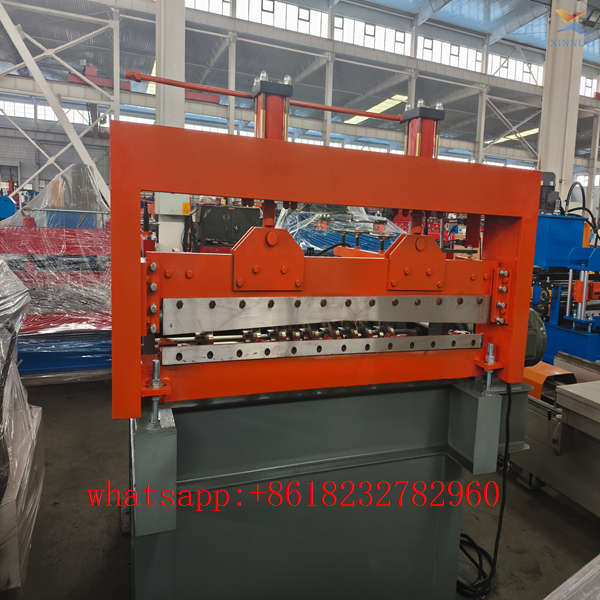

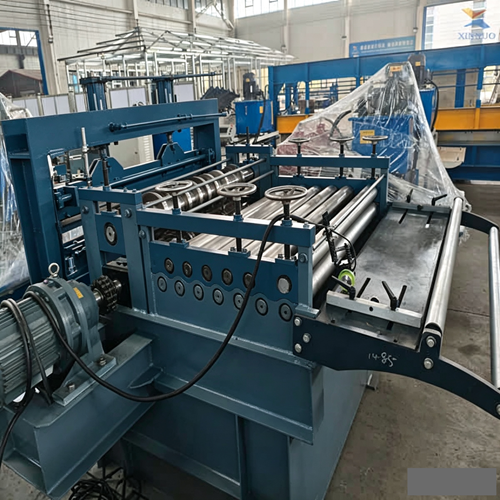

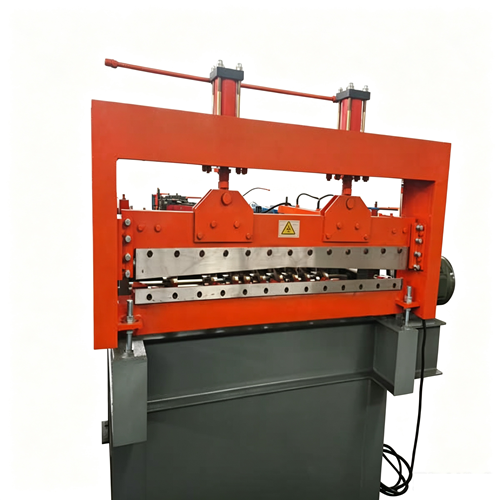

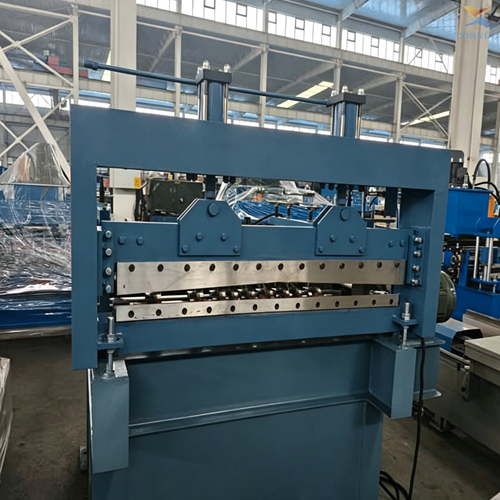

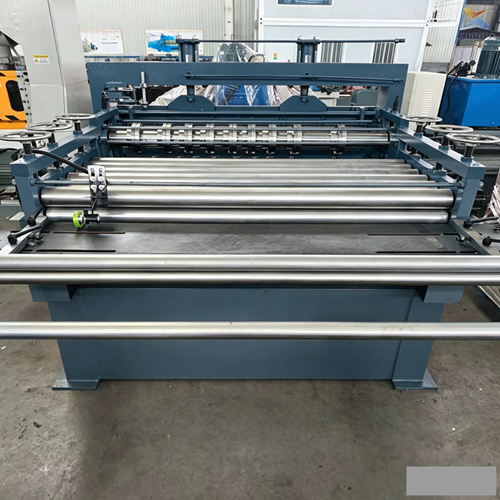

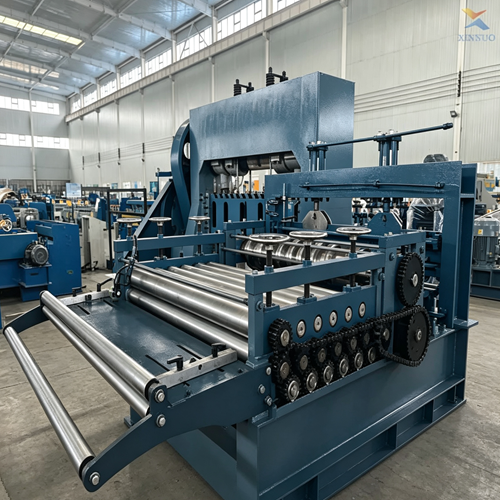

Steel Sheet Slitting Machine
This steel sheet slitting machine is categorized under Metal Coil Slitting Line, front-end auxiliary slitting equipment for tile roll formers, light keel machines and rolling shutter machines. It longitudinally cuts wide color steel, galvanized and Al-Mg-Mn coils into multiple narrow strips for thin sheets 0.3–2.5mm thick. It can form a compact automatic slitting line matched with simple uncoiler and recoiler, ideal for mass slitting in small & medium sheet metal and light steel building material factories.

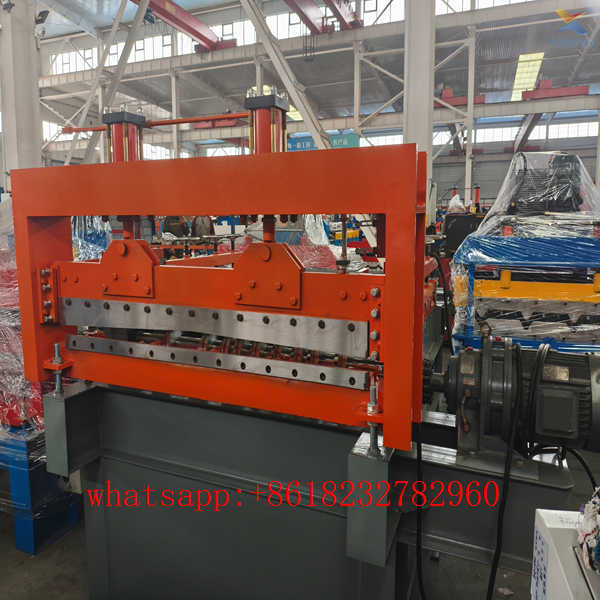

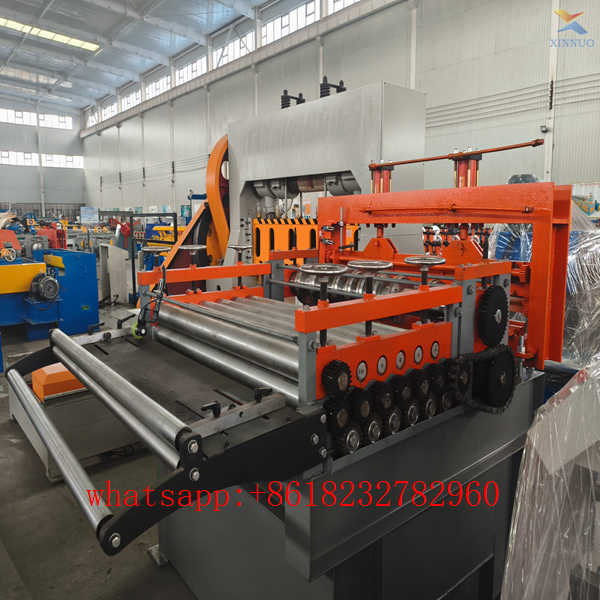

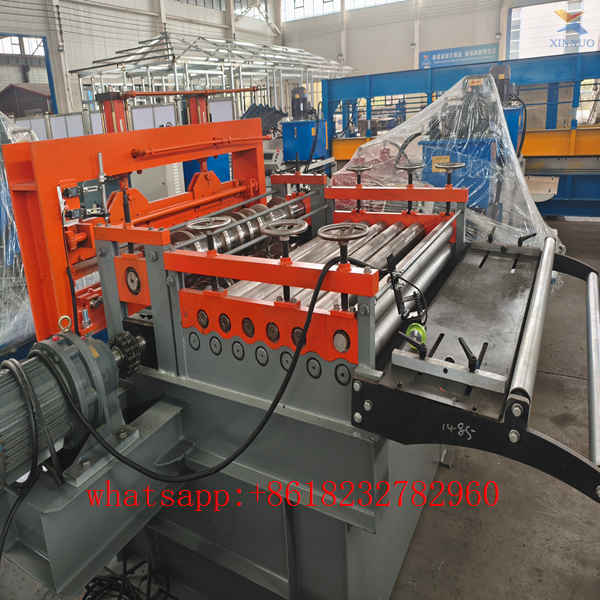

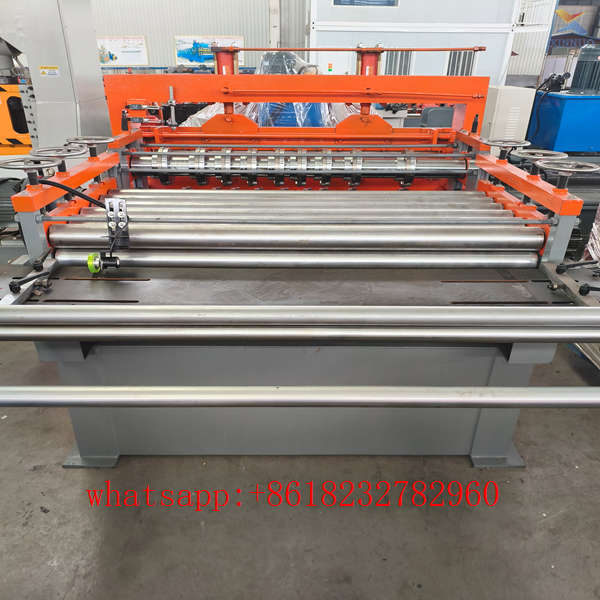

The machine frame is integrally welded with thick steel plates and stress-relieved after welding, maintaining stable performance without deformation during long continuous slitting. Upper & lower slitting shafts are forged from tempered 40Cr alloy steel, slitting blades integrally quenched and precision ground for sharp, long-lasting cutting edges. Slitted strips come burr-free, no curling or coating scratch. Blade spacing is quickly adjustable manually to produce various narrow strip widths, compatible with standard 1000/1250mm coil width. Multi-group leveling rollers installed in front flatten warped sheets before slitting to guarantee consistent strip width precision.
Equipped with variable frequency drive system, slitting speed steplessly adjustable from 5 m/min to 18 m/min. Dual front & rear hydraulic pressing clamps firmly hold steel strips to avoid offset and shifting during cutting, reducing material waste. Simple PLC control panel with intuitive operation for easy training of new operators, supporting synchronous start-stop with upstream uncoiler and downstream recoiler for non-stop continuous slitting. Compact body design saves workshop space, easy to disassemble and load into sea containers with low logistics cost.
Every steel slitting machine passes no-load and full-coil endurance cutting test before delivery. Complete spare slitting blades, adjusting tools and bilingual operation manuals are supplied as standard accessories. Xinnuo provides 12-month full machine warranty, delivery lead time 25–35 days, industrial voltage customization available for all countries. Remote installation & debugging guidance is accessible for overseas buyers. This cost-effective compact slitter gains wide recognition from small & medium profile manufacturers worldwide.
| Parameter Item |
Specification |
| Model Name |
Steel Sheet Slitting Machine / Metal Coil Longitudinal Slitter |
| Category |
Metal Coil Slitting Line |
| Processable Materials |
Color coated coil, galvanized strip, Al-Mg-Mn thin sheet |
| Applicable Sheet Thickness |
0.3–2.5mm |
| Max Feeding Width |
1000/1250mm (customizable) |
| Slitting Blades |
Quenched precision ground 40Cr alloy steel blades, adjustable spacing |
| Flattening System |
Front multi-group upper & lower leveling rollers for pre-straightening |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Slitting Running Speed |
5–18 m/min |
| Main Motor Power |
5.5–7.5kW |
| Pressing System |
Dual front & rear synchronous hydraulic anti-offset clamping |
| Control System |
Simple PLC interlock electric control |
| Overall Dimension |
3000×1350×1300mm |
| Total Machine Weight |
2.5–3.6 Tons |
| Warranty Period |
12 months full machine warranty |
| Delivery Lead Time |
25–35 days |
