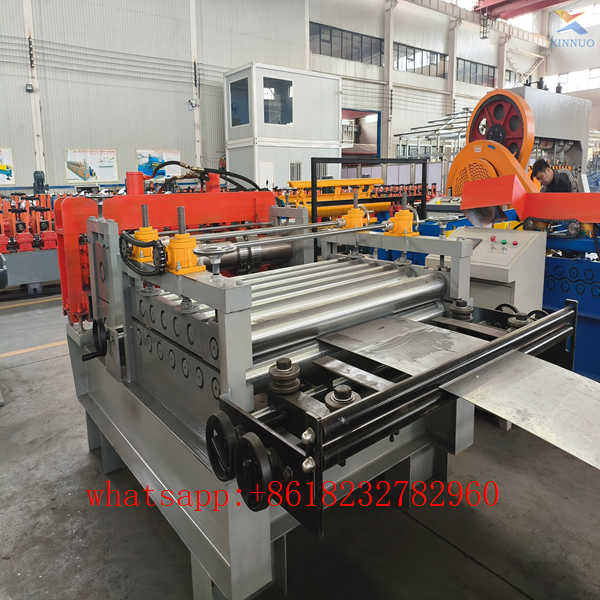

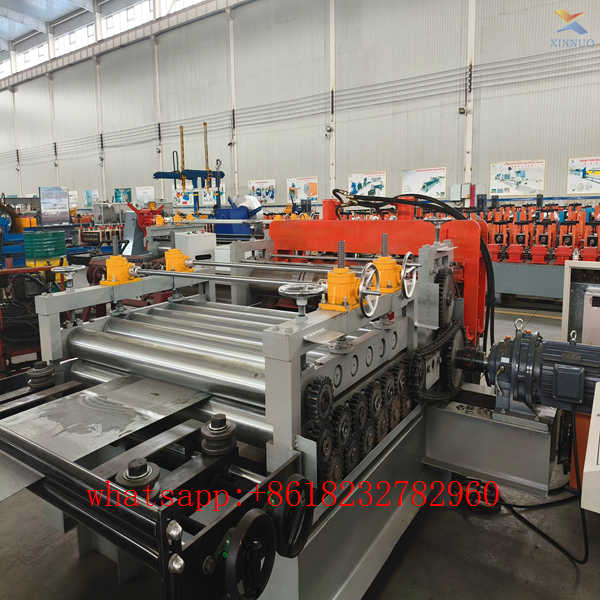

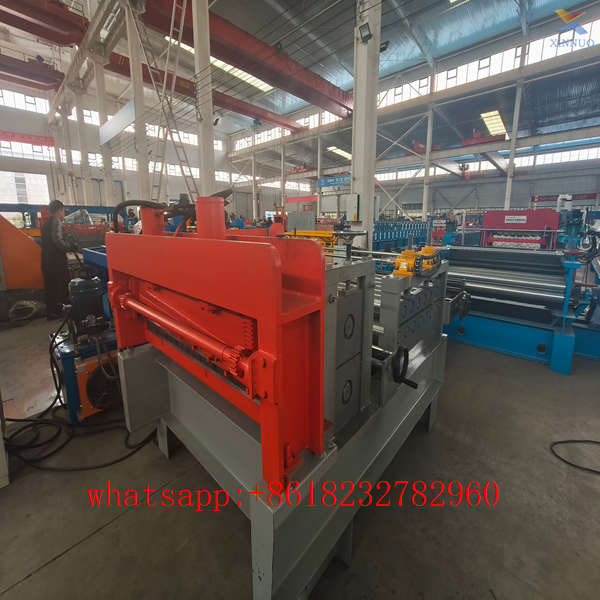

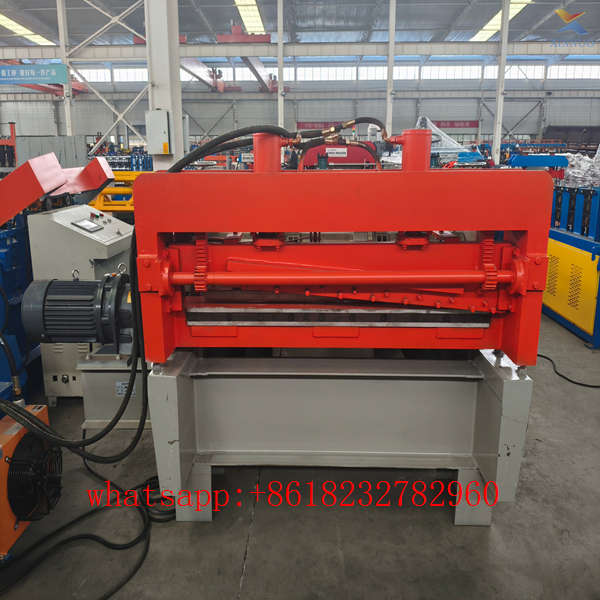

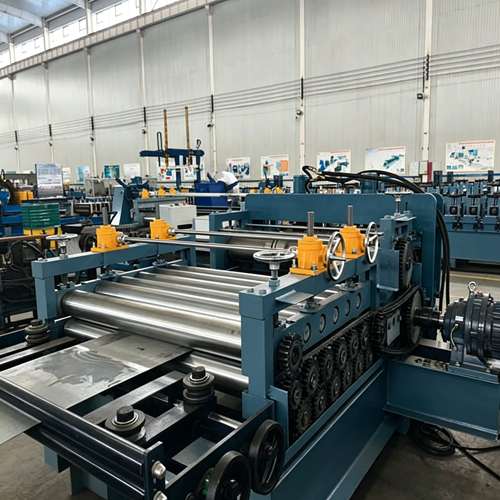

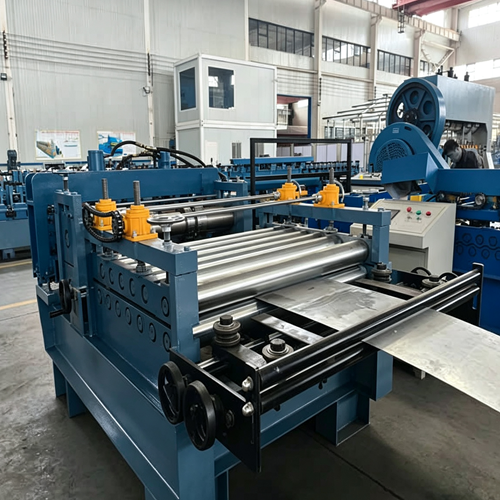

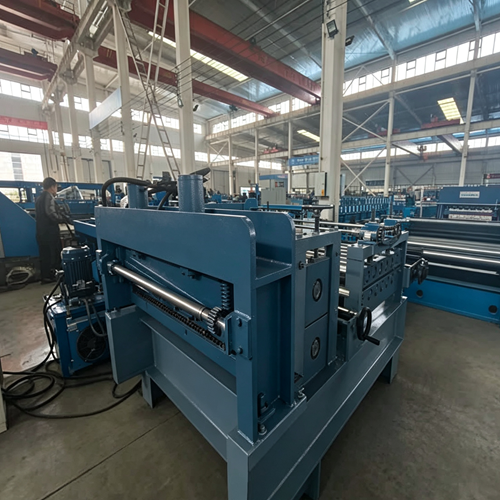

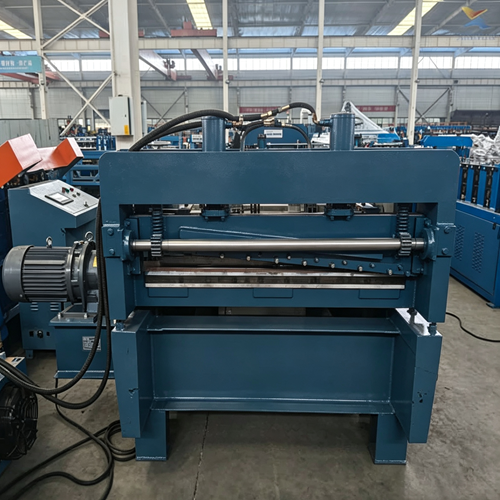

Metal Sheet Slitting Machine
This metal sheet slitting machine is classified under Metal Coil Slitting Line, the front-end auxiliary equipment for roof tile roll formers, light keel, rolling shutter and downspout production lines. It performs longitudinal precision slitting for wide metal coils, cutting raw coils into multiple narrow strips with custom widths. It processes color steel, galvanized, aluzinc and thin stainless steel sheets, and can form full automatic slitting line matched with uncoiler and recoiler, widely used in building material, sheet metal and steel structure factories.

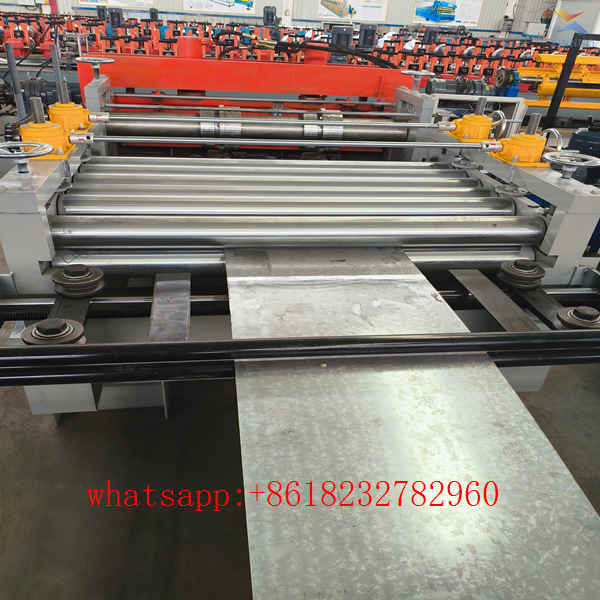

The machine frame is integrally welded with thick steel plates and treated by high-temperature stress relief annealing, maintaining stable non-deformation under long-time heavy-load slitting work. Upper and lower slitting shafts are made of premium tempered alloy steel, slitting blades are integrally quenched and precision ground with high hardness and long wear life. Slitted sheets have burr-free smooth edges without curling or coating scratch. Blade spacing can be quickly adjusted to produce multiple narrow strips in one pass, processing thin metal sheets from 0.3mm to 3.0mm thick, feeding width customizable at 1000/1250/1500mm. Multi-group flattening rollers installed in front straighten warped sheets before slitting to guarantee consistent width precision of finished strips.
Equipped with variable frequency drive system, slitting speed steplessly adjustable from 5 m/min to 20 m/min. Dual front & rear hydraulic pressing clamps firmly hold steel strips to prevent offset and shifting during cutting. Integrated PLC control panel with simple operation supports synchronous start-stop with front uncoiler and rear recoiler for continuous unattended slitting production. Compact body design saves workshop space, easy to disassemble and load into sea containers, perfect for small and medium processing workshops.
Every metal sheet slitting machine undergoes a 72-hour full-coil endurance slitting test before delivery, wear-resistant original blades and hydraulic seals are standard configuration. Complete spare slitting blades, adjusting tools and bilingual operation manuals are included as standard accessories. Xinnuo offers a 2-year full machine warranty, remote installation & debugging guidance and long-term original spare parts supply available for overseas buyers. This high-stable slitting auxiliary machine gains consistent recognition from global profile manufacturers.
| Parameter Item |
Specification |
| Model Name |
Metal Sheet Slitting Machine / Metal Coil Slitter |
| Category |
Metal Coil Slitting Line |
| Processable Materials |
Color coated steel, galvanized coil, aluzinc sheet, thin stainless steel |
| Applicable Sheet Thickness |
0.3–3.0mm |
| Custom Feeding Width |
1000/1250/1500mm |
| Slitting Blades |
Quenched precision ground alloy steel blades, adjustable spacing |
| Flattening System |
Multi-group upper & lower leveling rollers for pre-straightening |
| Speed Control Mode |
Variable frequency stepless speed regulation |
| Slitting Running Speed |
5–20 m/min |
| Main Motor Power |
5.5–11kW (selected by coil width) |
| Pressing System |
Dual front & rear hydraulic pressing anti-deviation structure |
| Control System |
Integrated PLC interlock automatic electric control |
| Overall Dimension |
3300×1420×1380mm (varies by coil width) |
| Total Machine Weight |
2.9–4.3 Tons |
| Warranty Period |
2 years for complete machine |
