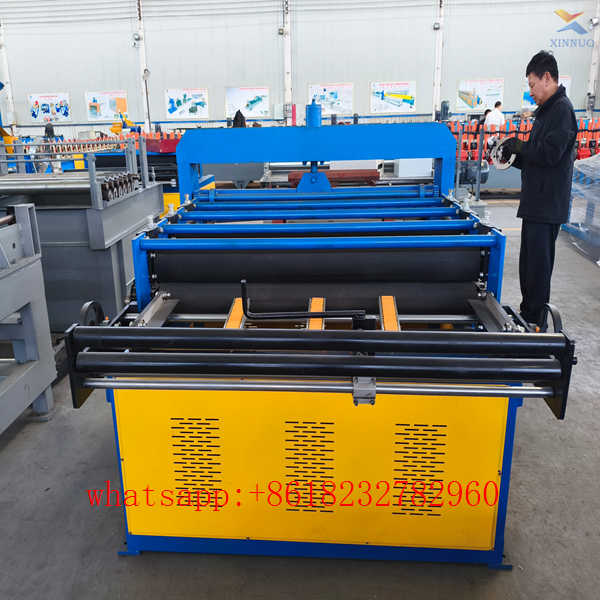

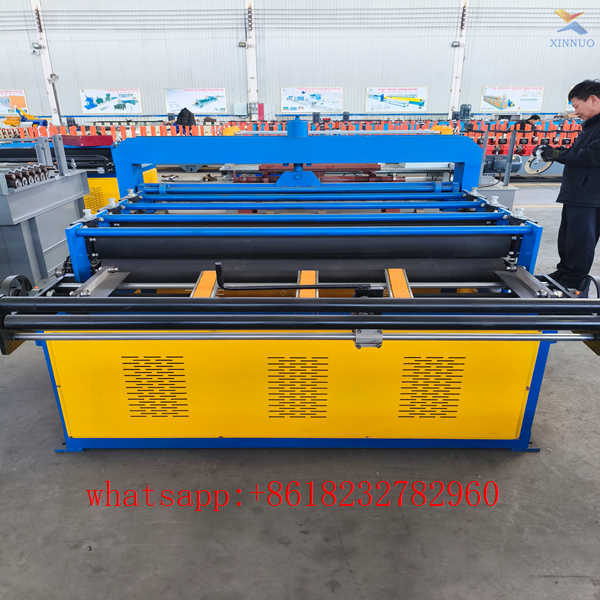

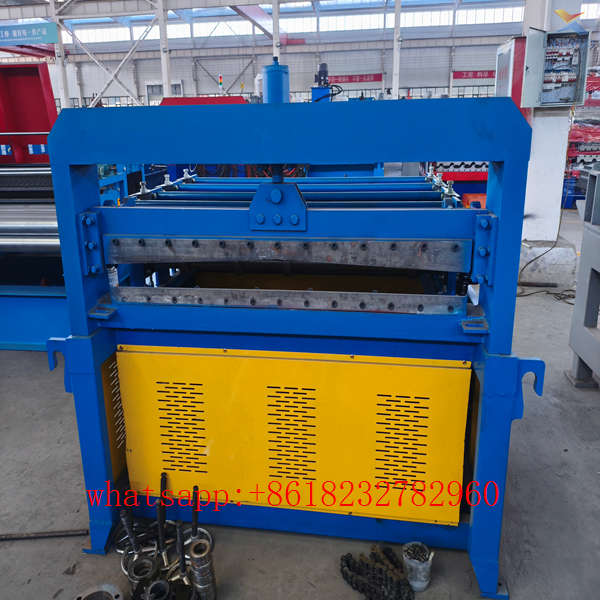

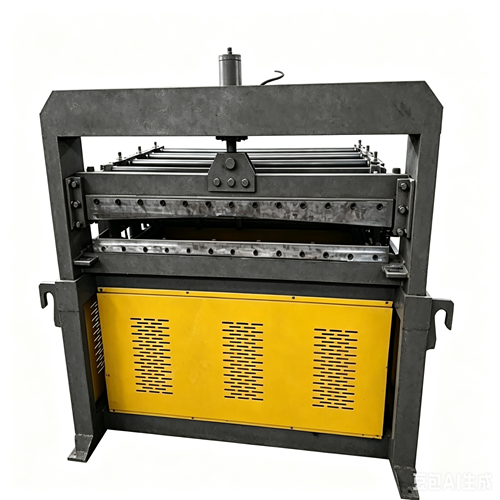

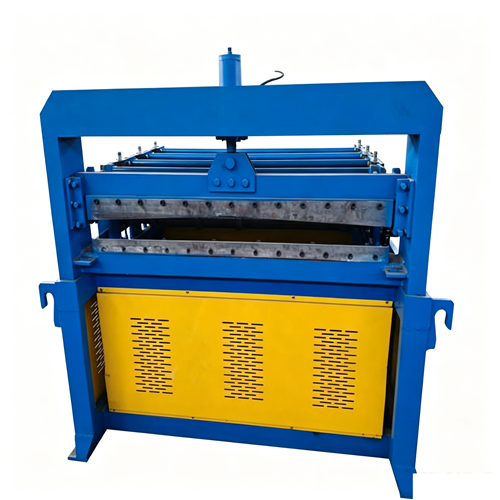

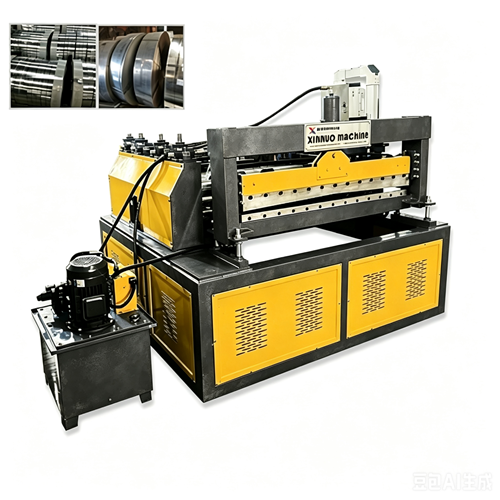

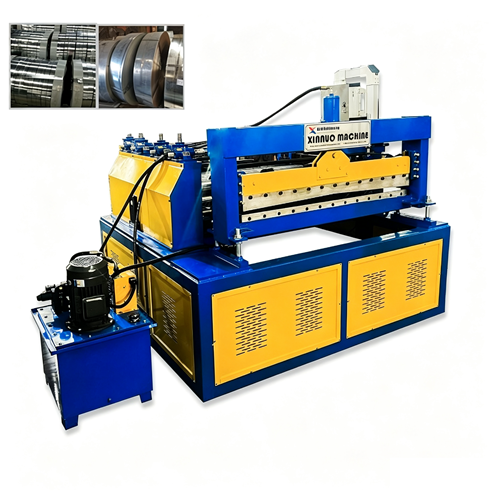

Slitting and Leveling Machine
This slitting and leveling machine is categorized under Metal Coil Slitting Line, integrated auxiliary metal coil processing equipment combining leveling and longitudinal slitting functions. It serves as front-end matching equipment for color steel tile, light steel keel, photovoltaic support and anti-slip plate production lines, completing sheet flattening and multi-width narrow strip cutting in one single pass. It processes galvanized, color coated, Al-Mg-Mn and thin stainless steel sheets, and can form compact automatic slitting line matched with uncoiler and recoiler, ideal for small & medium sheet metal and building material factories.

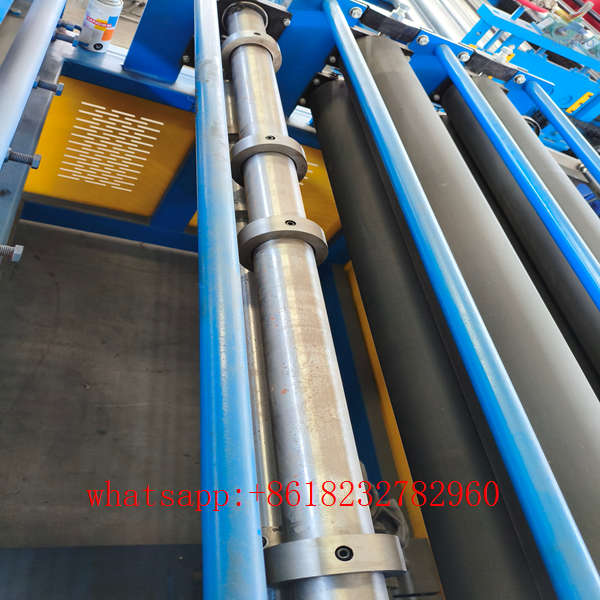

The machine adopts gantry frame integrally welded with thick steel plates, treated by high-temperature stress relief annealing after welding to eliminate internal stress, keeping stable performance without frame deformation during long continuous processing. Multi-group upper & lower precision leveling rollers are installed at front section, roller cores tempered and chrome-plated to fully eliminate coil warp, wave and internal stress wrinkles for uniform flat finished sheets. Alloy steel slitting shafts are equipped at rear, quenched & precision ground blades deliver smooth burr-free cutting edges without scratching sheet anti-corrosion coating. Blade spacing can be quickly adjusted to produce narrow strips of various custom widths. It fits thin metal sheets 0.3–2.8mm thick, standard feeding width 1000/1250mm, wider size customizable on request.
Equipped with variable frequency synchronous drive system, leveling and slitting run synchronously, processing speed steplessly adjustable from 4 m/min to 18 m/min. Dual upper & lower hydraulic pressing clamps hold steel strips bidirectionally to avoid offset and stacking during cutting, reducing material waste. Simple PLC electric control panel with intuitive operation for easy training of new operators, supporting synchronous start-stop with upstream uncoiler and downstream recoiler for unattended continuous processing. Compact body design saves workshop space, easy to disassemble and load into sea containers with lower logistics cost.
Every integrated slitting & leveling machine passes no-load and full-coil endurance test before delivery. Complete spare slitting blades, leveling roller spare parts, adjusting tooling and bilingual operation manuals are supplied as standard accessories. Xinnuo offers a 2-year full machine warranty, delivery lead time 50–60 days, industrial voltage customization available for all countries. Remote installation & debugging guidance is accessible for overseas buyers. This highly integrated cost-effective all-in-one processing machine gains wide recognition from global profile supporting manufacturers.
| Parameter Item |
Specification |
| Model Name |
Slitting and Leveling Machine / Integrated Metal Coil Leveler Slitter |
| Category |
Metal Coil Slitting Line |
| Processable Materials |
Color coated coil, galvanized strip, Al-Mg-Mn thin sheet, stainless steel |
| Applicable Sheet Thickness |
0.3–2.8mm |
| Max Feeding Width |
1000/1250mm (custom wider size available) |
| Leveling System |
Multi-group chrome-plated tempered leveling rollers to eliminate sheet warp & wrinkle |
| Slitting Blades |
Quenched precision ground 40Cr alloy steel blades, quick adjustable spacing |
| Speed Control Mode |
Variable frequency synchronous stepless speed regulation |
| Processing Running Speed |
4–18 m/min |
| Main Motor Power |
7.5–11kW (selected by coil width) |
| Pressing System |
Dual upper & lower bidirectional synchronous hydraulic anti-offset clamping |
| Control System |
Simple PLC interlock full-automatic electric control |
| Overall Dimension |
3400×1400×1450mm (varies by coil width) |
| Total Machine Weight |
3.2–4.5 Tons |
| Warranty Period |
2 years for complete machine |
| Delivery Lead Time |
50–60 days |
