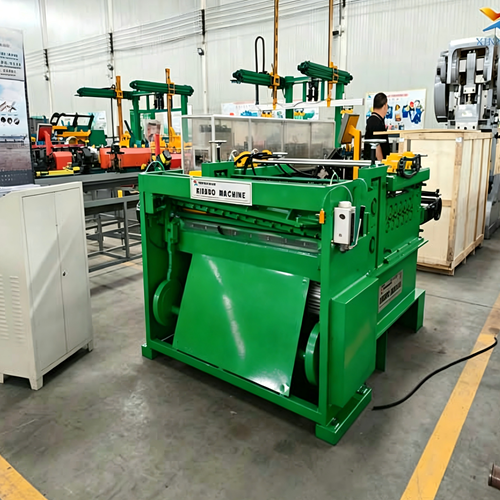

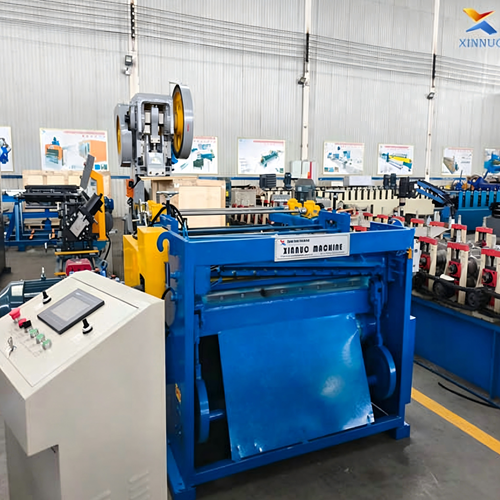

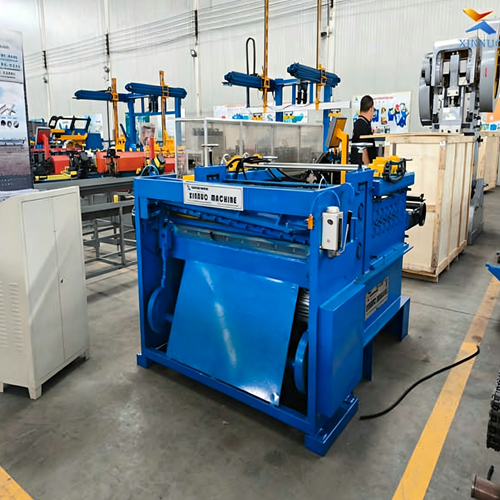

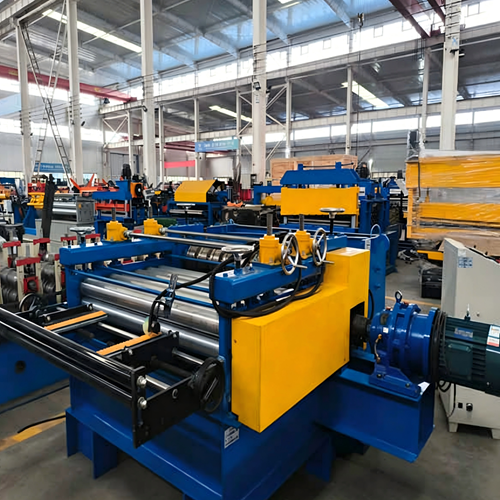

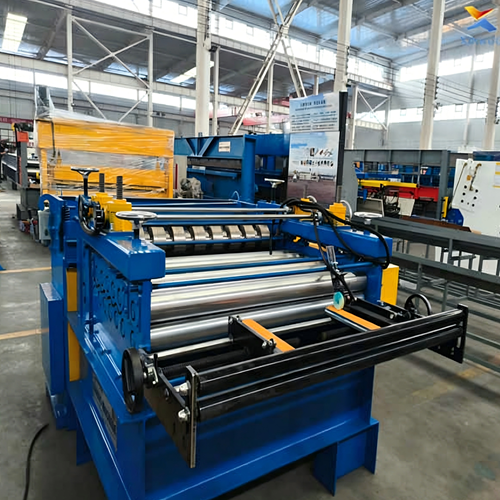

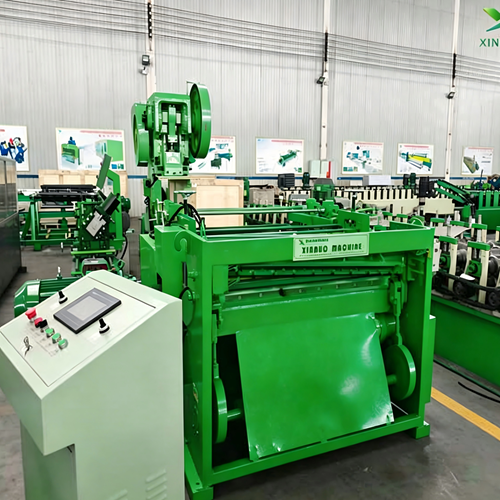

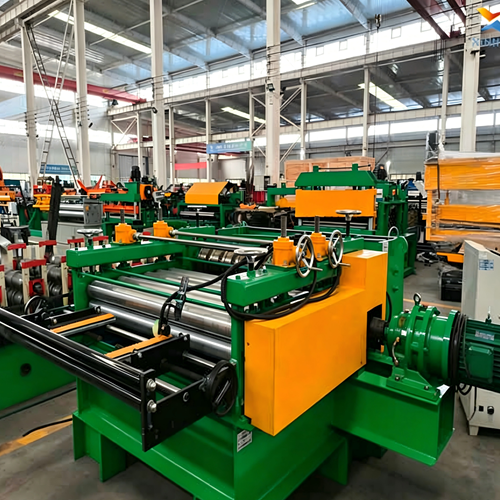

Leveling and Slitting Machine

Hebei Xinnuo Roll Forming Machinery Co., Ltd. has specialized in R&D and manufacturing of complete metal coil processing equipment for over a decade. The 1300*2.0 Leveling and Slitting Machine is an integrated composite processing machine combining sheet leveling and longitudinal slitting functions. It is designed for cold-rolled steel, galvanized sheets, stainless steel coils and color coated coils, widely matched with steel structure factories, shelf manufacturers, metal pipe plants and roof tile production lines. This machine can finish coil feeding, flattening and longitudinal cutting in one continuous procedure, replacing two separate machines: a single leveler and an independent slitter. It effectively reduces factory space occupation, equipment purchase cost and labor maintenance expense, and has been exported to Southeast Asia, the Middle East, Europe, South America and other regions year-round.

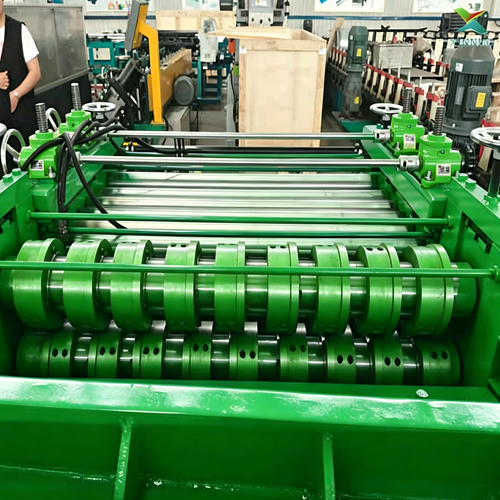

Its rated processing width reaches 1300mm, and the maximum applicable sheet thickness is 2.0mm, compatible with all kinds of carbon steel and alloy thin coils ranging from 0.3mm to 2.0mm. The leveling unit adopts multiple groups of staggered solid leveling rollers made of 45# carbon steel with thick hard chrome plating, which is wear-resistant and will not scratch the coating of sheets. The multi-stage progressive flattening structure completely eliminates coil waves, warpage and internal stress to guarantee flat surfaces without deformation. The rear slitting unit is equipped with high-precision cemented carbide cutter groups, delivering smooth cutting edges free of burrs and curling. Operators can cut steel strips into multiple customized widths, with dimensional tolerance strictly controlled within ±0.1mm to meet high-precision processing standards.

The whole machine frame is integrally welded with thick steel plates and processed by high-temperature stress relief annealing, ensuring stable operation without vibration under heavy load at high speed. The main transmission system consists of variable frequency motors and heavy-duty synchronous chains, featuring smooth running and low noise. The feeding speed can be steplessly adjusted from 8 m/min to 18 m/min. An automatic guiding deviation correction device avoids steel strip offset, while an independent hydraulic tension rewinding mechanism neatly winds narrow strips after slitting without loose coils. Equipped with a full PLC touch screen numerical control system, operators can preset slitting width, processing speed and rewinding length on the panel. The machine runs fully automatically with only one worker in charge, supporting 24-hour non-stop production. Its efficiency is 1.5 times higher than split separate equipment, greatly cutting raw material waste caused by defective plates.

Every integrated machine passes a 72-hour continuous material loading test before delivery to calibrate leveling precision and slitting clearance. A full set of spare cutter dies, leveling roller accessories, bilingual operation drawings and manuals are delivered together. Xinnuo provides a 2-year full machine warranty. Overseas buyers can obtain remote technical support and on-site commissioning by professional engineers. Reliable and long-lasting performance has earned consistent recognition and repeat orders from metal processing manufacturers worldwide.

Parameter Item	Specification
Model	1300*2.0 Leveling and Slitting Machine
Processable Materials	Cold rolled carbon steel, galvanized sheet, stainless steel, color coated coil
Max Effective Processing Width	1300mm
Applicable Sheet Thickness	0.3–2.0mm
Leveling Roller Layout	9 upper rollers + 8 lower staggered rollers
Slitting Cutter Material	Wear-resistant cemented carbide
Slitting Dimensional Tolerance	±0.1mm
Speed Control	Variable frequency stepless speed regulation
Running Speed	8–18 m/min
Main Motor Power	15kW
Control System	Full-automatic PLC touch screen control
Overall Dimension	5600×1650×1480mm
Total Machine Weight	5.8 Tons
Warranty Period	2 years for complete machine
